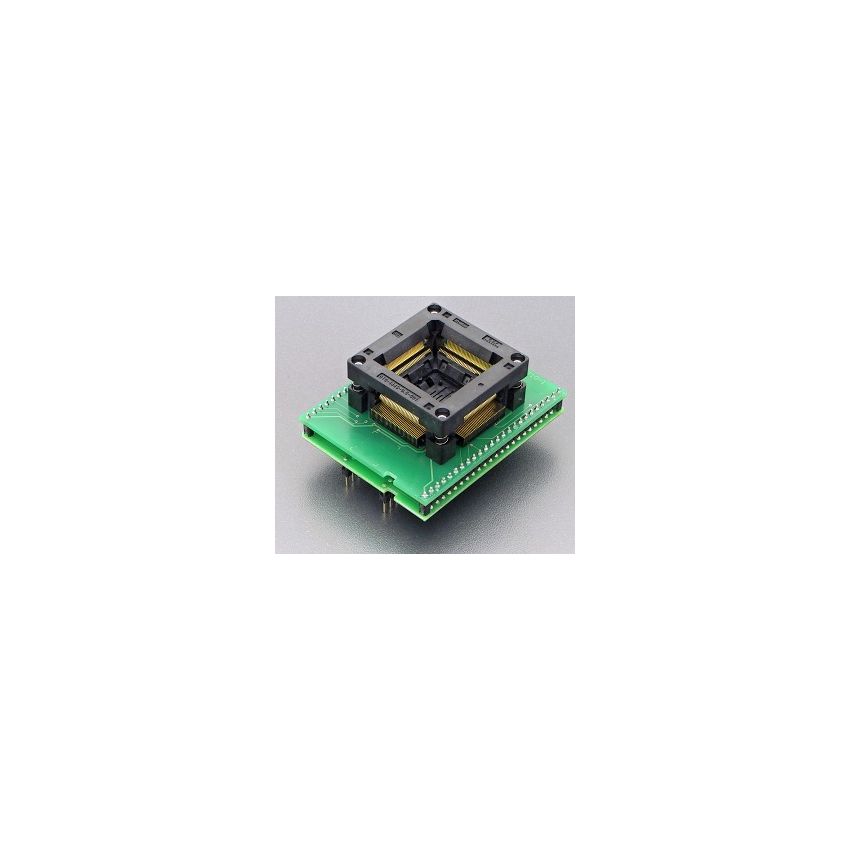

DIL48/TQFP144 ZIF ST10-1

The special adapter with Ord. no. 70-0426 is specifically designed for use with ST10F276 microcontroller in a TQFP144 package. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, providing reliable and durable performance for programming or testing operations.



The adapter is made in Slovakia, ensuring high-quality manufacturing processes and materials. It is designed with an OpenTop type ZIF socket, which allows for easy insertion and removal of the microcontroller without applying excessive force or risk of damaging the pins.



The bottom part of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spacing of 600mil. These pins are designed to connect with the corresponding pins on the ST10F276 microcontroller in the TQFP144 package, providing a reliable electrical connection for programming or testing operations.



The Ord. no. 70-0426 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the ST10F276 microcontroller with the TQFP144 adapter before proceeding with programming or testing operations to ensure proper functionality and avoid any potential damage to the microcontroller or the adapter.
