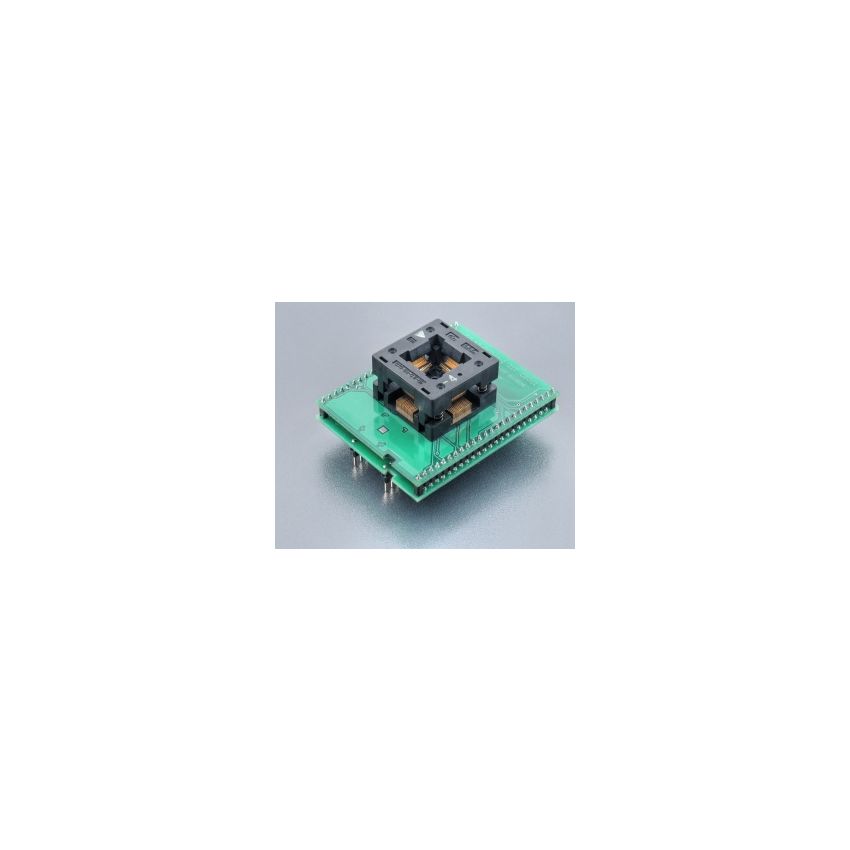

DIL48/QFP64-1 ZIF C8051

The special adapter is designed for devices in the Silicon Laboratories (now Silicon Labs) / Cygnal C8051Fxxx family of microcontrollers, which are housed in QFP64 (Quad Flat Package) packages. The adapter is made in Slovakia and identified by Ord. no. 70-0304.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the QFP64 devices during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x20 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the 64-pin QFP devices of the Silicon Laboratories / Cygnal C8051Fxxx family, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0304. It features a ZIF QFP64 socket of the OpenTop type and is designed specifically for devices in the Silicon Laboratories / Cygnal C8051Fxxx family in QFP64 packages, offering a dedicated solution for programming and testing these devices.
