DIL12/QFN11-1 ZIF-CS

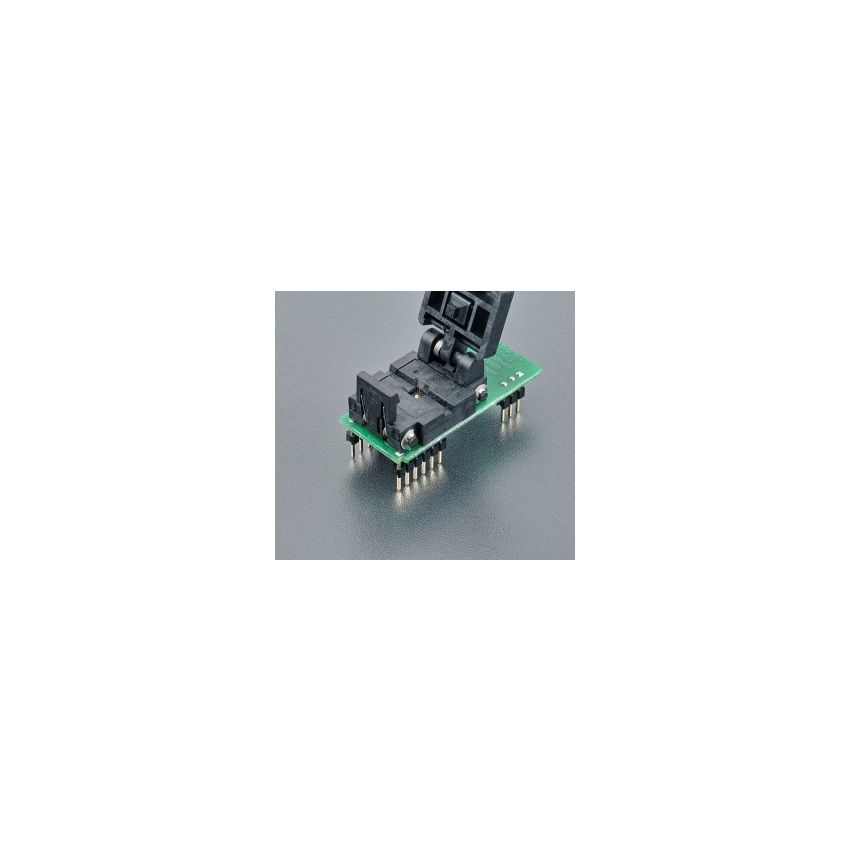

The universal adapter is designed for devices in QFN10 (Quad Flat No-Lead 10), MLF10 (Micro Leadframe 10), HVSON10 (Micro Leadframe 10 with Heat/Voltage Slug), QFN11 (Quad Flat No-Lead 11), or MLP11 (Micro Leadframe 11) packages, such as microcontrollers from the 51 series of Cygnal, NXP, Silicon Laboratories, and Atmel ATtiny series. The adapter is made in Slovakia and identified by Ord. no. 70-0308.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the QFN10/MLF10/HVSON10/QFN11/MLP11 devices during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x6 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the 10 or 11 pins of the QFN, MLF, HVSON, or MLP devices, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0308. It features a ZIF QFN11 socket of the ClamShell type and is designed as a universal solution for programming and testing devices in QFN10/MLF10/HVSON10/QFN11/MLP11 packages, including microcontrollers from the 51 series of Cygnal, NXP, Silicon Laboratories, and Atmel ATtiny series, and similar devices.
