Arduino UNO Q Core Kit

The Arduino UNO Q Core Kit is a complete solution for learning and building modern electronics, robotics, IoT, and AI applications. At its core is the Arduino UNO Q, a dual-architecture board that combines a high-performance Linux-based processor with a real-time microcontroller, allowing you to develop both advanced software and precise hardware control in one system.

The board integrates a Qualcomm Dragonwing QRB2210 quad-core processor (up to 2.0 GHz) running Debian Linux, alongside an STM32U585 Cortex-M33 microcontroller (up to 160 MHz, 2 MB Flash, 786 KB SRAM). It supports Wi-Fi (2.4/5 GHz), Bluetooth 5.1, USB-C connectivity, Qwiic expansion, Arduino shield compatibility, and high-speed interfaces for cameras, displays, and audio, making it suitable for AI at the edge, robotics, and smart systems.

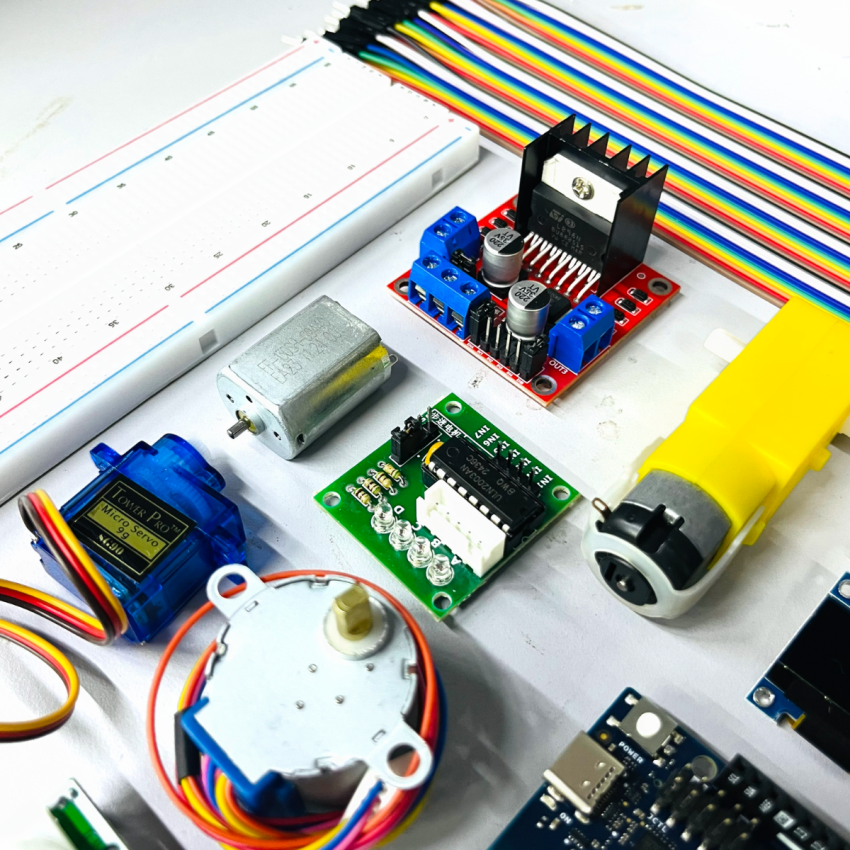

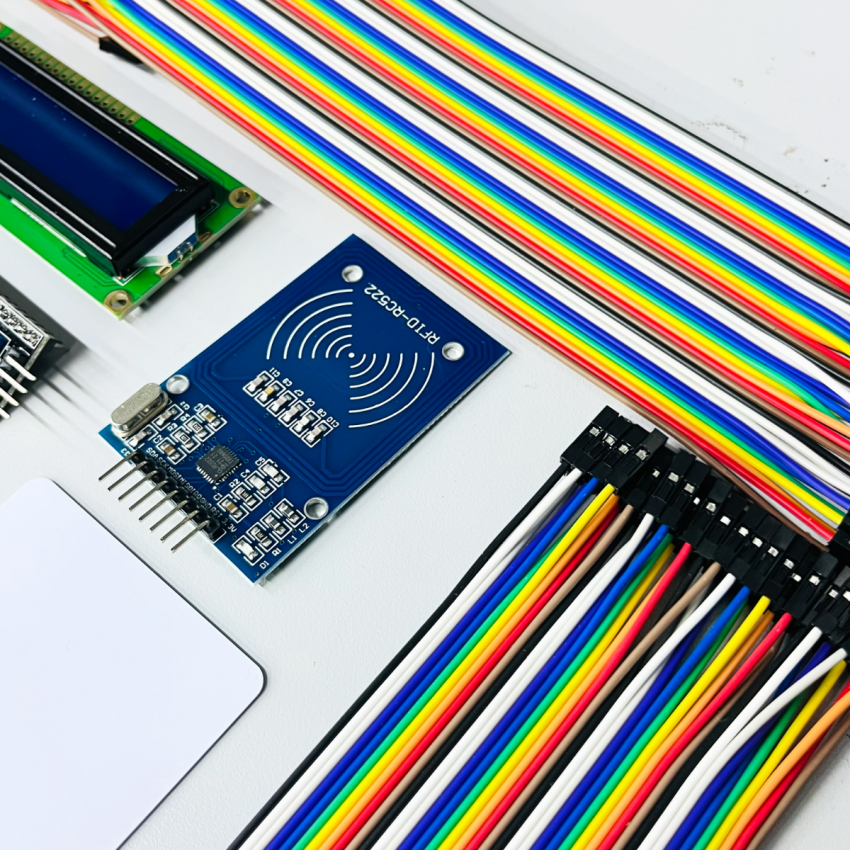

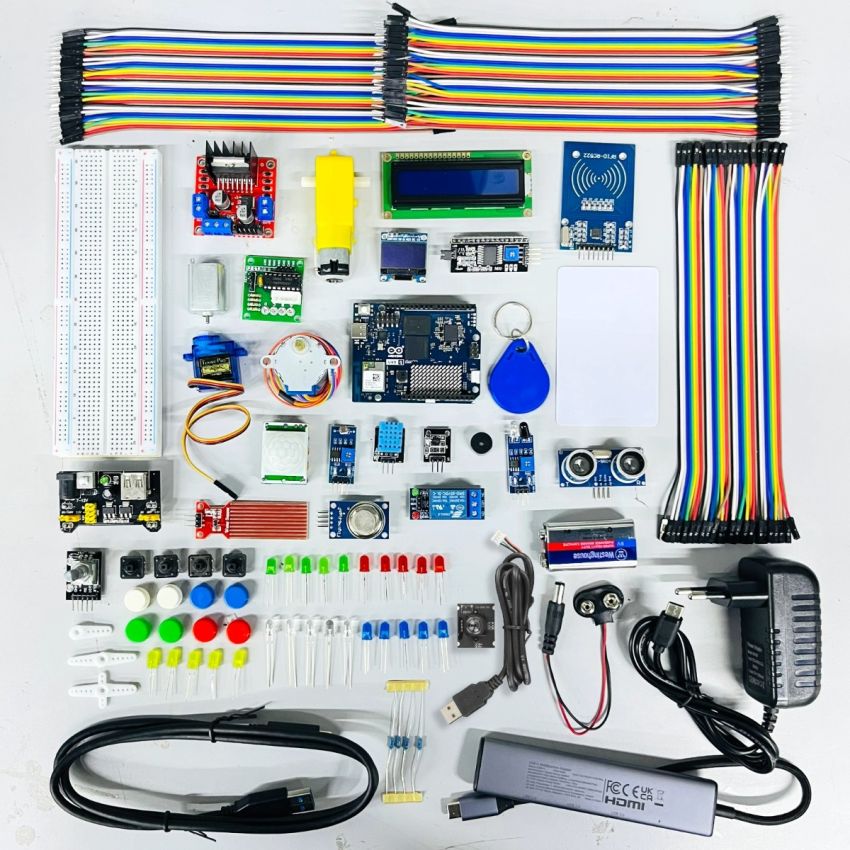

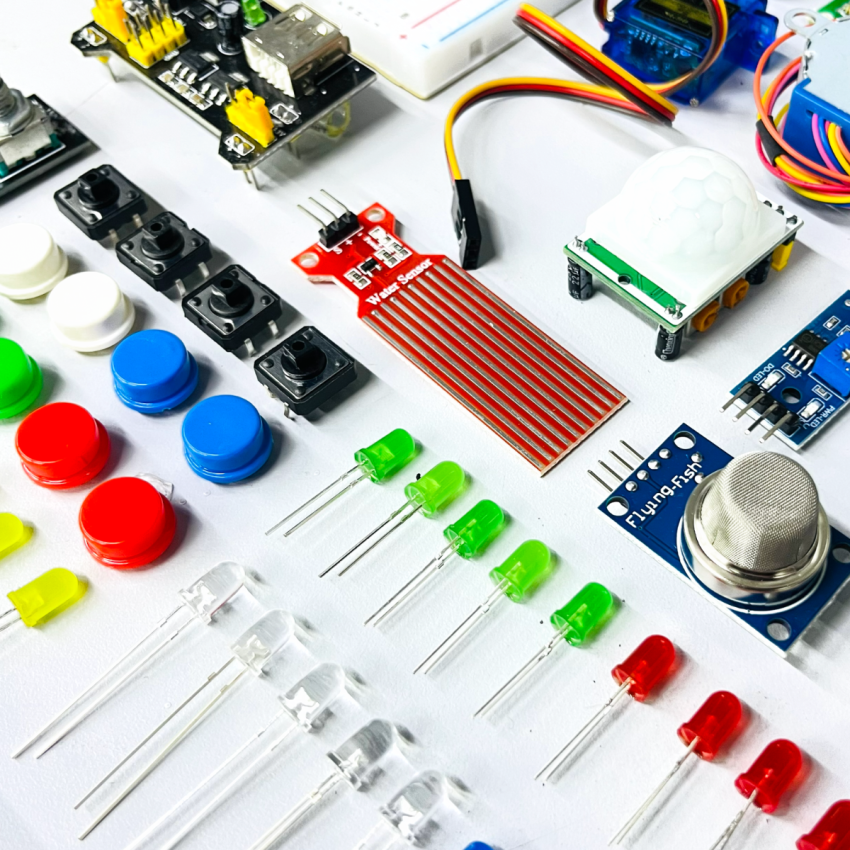

Kit Contents

Core Components

UNO Q Board (4 GB) ×1
USB-C Power Adapter (5V) ×1
USB A to USB C Cable (1 m) ×1
USB-C Hub (HDMI, 3× USB, Power Delivery) ×1

Sensors and Input Modules

Ultrasonic Distance Sensor (HC-SR04) ×1
Infrared Sensor ×1
Water Level Sensor ×1
LDR Light Sensor ×1
DHT11 Temperature & Humidity Sensor ×1
MQ-2 Gas Sensor ×1
PIR Motion Sensor (HC-SR501) ×1
DS18B20 Digital Temperature Sensor ×1

Actuators and Motion

DC Gear Motor (3V–6V) ×1
280 Micro DC Motor (3V–12V) ×1
Micro Servo Motor (SG90) ×1
Stepper Motor 28BYJ-48 with Driver Board ×1
L298N Motor Driver Module ×1

Display and Output

OLED Display 0.96 inch (I2C) ×1
LCD1602 Display with I2C Module ×1
5 mm LEDs (assorted colors) ×25
5V Buzzer ×1

Control and Interface

Rotary Encoder (KY-040) ×1
1 Channel Relay Module (5V) ×1
Tactile Push Buttons ×4
Button Caps (Blue ×2, Green ×2, Red ×2, White ×2)

Prototyping and Power

Breadboard (830 tie points) ×1
Breadboard Power Supply Module ×1
Resistors 220Ω ×4
Jumper Wires (Male-Male, 40 pin, 20 cm) ×1
Jumper Wires (Male-Female, 40 pin, 20 cm) ×1
Jumper Wires (Female-Female, 40 pin, 20 cm) ×1
9V Battery ×1
9V Battery Holder ×1

Advanced Module

RFID Reader (RC522, 13.56 MHz) ×1
USB Camera (0.3 MP) ×1


Development and Applications

The UNO Q supports Arduino IDE, Arduino App Lab, and Linux-based development using Python and other tools, enabling hybrid workflows between high-level applications and real-time control. With this kit, users can build robotics systems, smart home solutions, IoT devices, AI and computer vision projects, and interactive embedded applications.


Ideal For

This kit is suitable for students, educators, training centers, makers, and professionals looking to explore advanced Arduino systems, robotics, and AI development in a single integrated platform.

Projects You Can Build

With the Arduino UNO Q Core Kit, you can create a wide range of hands-on projects, from basic electronics to advanced AI-powered systems:

Basic & Beginner Projects

LED Blinking and Light Patterns
Smart Light System using LDR (automatic ON/OFF)
Temperature & Humidity Monitor (DHT11)
Digital Thermometer using DS18B20
Motion Detection Alarm (PIR Sensor + Buzzer)
Water Level Indicator System

Intermediate Projects

Obstacle Avoidance System using Ultrasonic Sensor
Smart Gas Leak Detection System (MQ-2 Sensor)
Home Automation System using Relay Module
Interactive Menu using LCD1602 / OLED Display
Rotary Encoder Controlled Menu System
Servo Motor Control System

Robotics Projects

Basic Robot Car (DC Motors + L298N Driver)
Line Follower Robot
Obstacle Avoidance Robot
Stepper Motor Positioning System
Smart Door Lock System using RFID (RC522)


IoT & Smart Systems

Remote Monitoring System via Wi-Fi
Smart Home Dashboard (control lights/devices)
Environmental Monitoring Station
Cloud Data Logging System


AI & Computer Vision Projects

Face Detection System using USB Camera
Object Detection & Tracking
Smart Surveillance Camera
Gesture-Based Control System
AI-powered Robot Navigation

Advanced Hybrid Projects (Linux + Microcontroller)

Edge AI Robot (real-time control + AI processing)
Voice-Controlled Smart Assistant
Autonomous Smart Security System
AI-powered Smart Agriculture Monitoring
