Description :

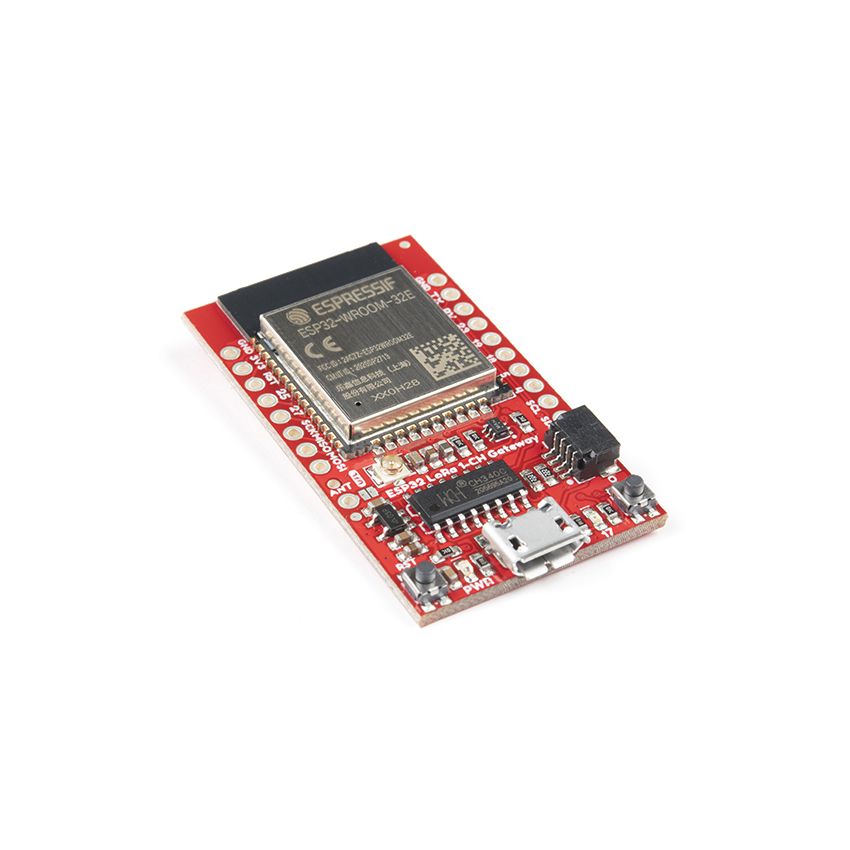

The SparkFun 1-Channel LoRa Gateway is a powerful device that can handle 3 networks (915MHz LoRa, Bluetooth, and WiFi)
The device can convert LoRa radio messages into data packets that can be accessed via the web
It's a low-cost tool for monitoring a dozen-or-so LoRa devices and relaying their messages to the cloud
The device comes with a Qwiic connector and a breadboard-compatible array of ESP32 pin-breakouts
It can act as a gateway or a device, but not both at the same time
To ensure proper setup, it's recommended to have another LoRa device or gateway to transmit/listen to
To use the 915MHz radio on the gateway, an antenna is required (two options: 3-inch solid-core wire or 915MHz antenna with a U.FL connector)

Features:

ESP32-WROOM-32 module - 16MB
WiFi, BT BLE microcontroller
Integrated PCB antenna
Hope RFM95W LoRa modem
Frequency range: 868/915 MHz
Spread factor: 6-12
SPI control interface
U.FL antenna connector for LoRa radio
Reset and ESP32 pin0 buttons
14 GPIO ESP32 pin-breakouts
Power and user LEDs
Qwiic connector
CH340C USB-to-Serial interface
Micro-B USB connector for power and programming
All current consumption tested at 5V
~170 mA when formatting SPIFFS in Gateway mode
~150 mA when searching for WiFi network in Gateway mode
80 to 100 mA in steady operation of Gateway
~70 mA when using the LoRa Device example
