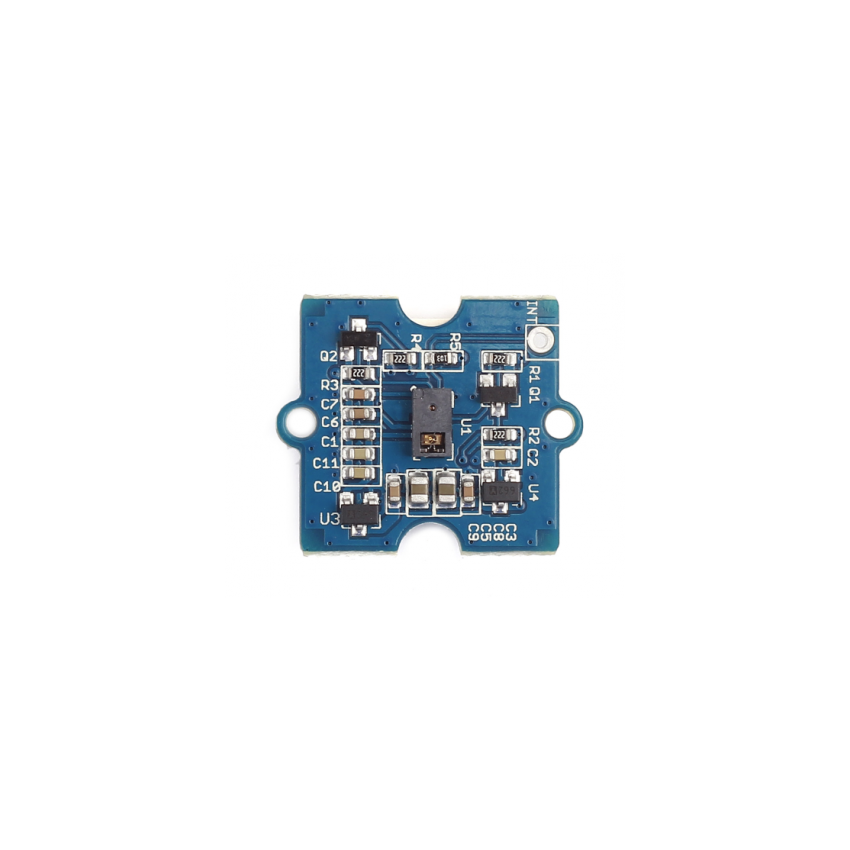

• The sensor on Grove - Gesture is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 basic gestures, and these gestures information can be simply accessed via the I2C bus.
• Application: You can use Gesture as an input device to control another grove, or a computer, mobile phone, smart car, robot, and more with a simple swipe of your hand.

Features:

• Built-in proximity detection
• Various main boards support : Arduino UNO/Seeeduino/Arduino Mega2560
• 9 Basic gestures
Up
Down
Left
Right
Forward
Backward
Clockwise
Count Clockwise
Wave

Specifications:

• Power supply 5V
• Ambient light immunity < 100k Lux
• Gesture speed in Normal Mode 60°/s to 600°/s
• Gesture speed in Gaming Mode 60°/s to 1200°/s
• Interface type IIC interface up to 400 kbit/s
• Operating Temperature -40°C to 85°C
• Dimensions 20 * 20mmv
• Detection range 5-10cm
• I2C Address 0x73
