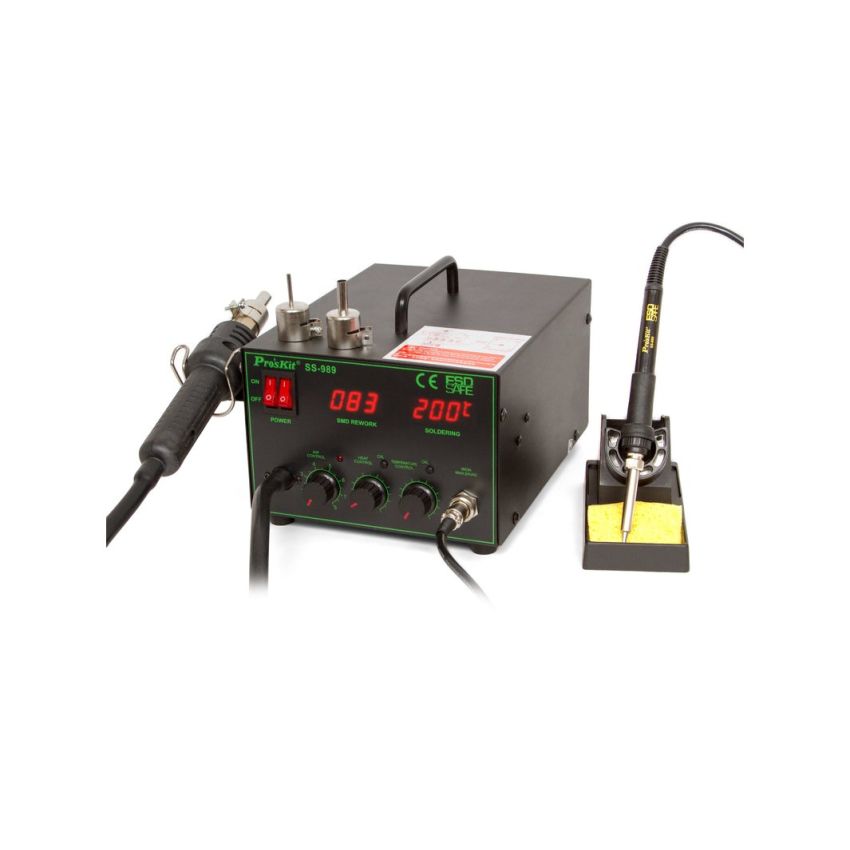

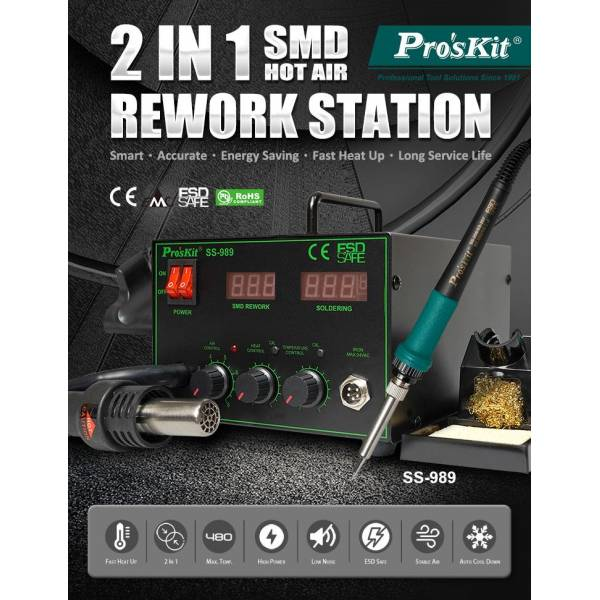

SS-989 2 In 1 SMD Hot Air Rework Station (220V)700W

Pro'sKit SS-989B multifunction hot air soldering station combines hot air gun and soldering iron functions. This station can be used to rework the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, etc).

Features

• Microprocessor controlled and anti-static implementation.
• The automatic cooling increases the uptime of the station and its components.
• Digital indicated the temperature of the hot air gun and soldering iron.
• Compatible with series T soldering iron tips from AOYUE and other HAKKO-compatible tips.
• Compatible with Replacement Air Nozzles from AOYUE.

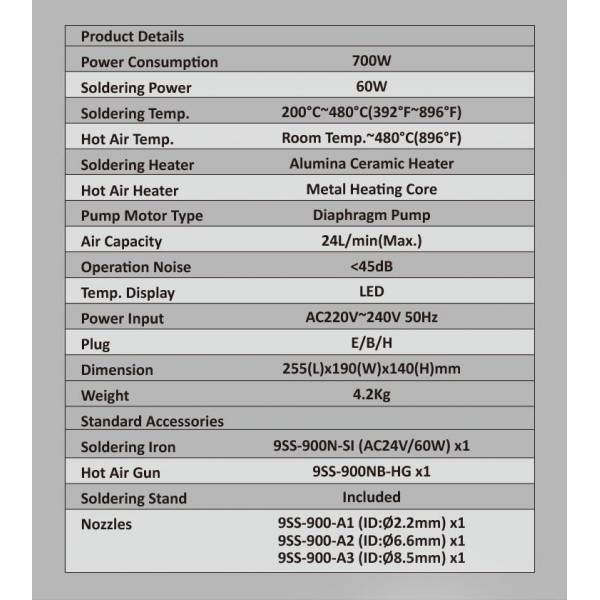

Technical Specifications

• Power Input 220V /  50Hz
• Power Consumption 700 W
• Soldering Power 60 W
• Temperature Range 200°C ~ 480°C
• Desoldering temperature range 100°C ~ 420°C
• Heating Element Metal Heating Spiral
• Pump Type Diaphragm Pump
• Air Capacity 24L/min（max)
• Temperature Display LED
• Dimensions 330 x 275 x 195 mm
• Weight 3.70

Applications

• Complete range of rework applications in medium and large scale service centers
• Mobile and radio systems devices repair
• Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
• LAN, network nodes, and military communications systems equipment repair

Package Contents

• Hot air soldering station Pro'sKit SS-989
• Soldering iron
• Soldering iron Stand
• Heat Gun holder
• Air nozzle (3 pcs.)
• User manual
