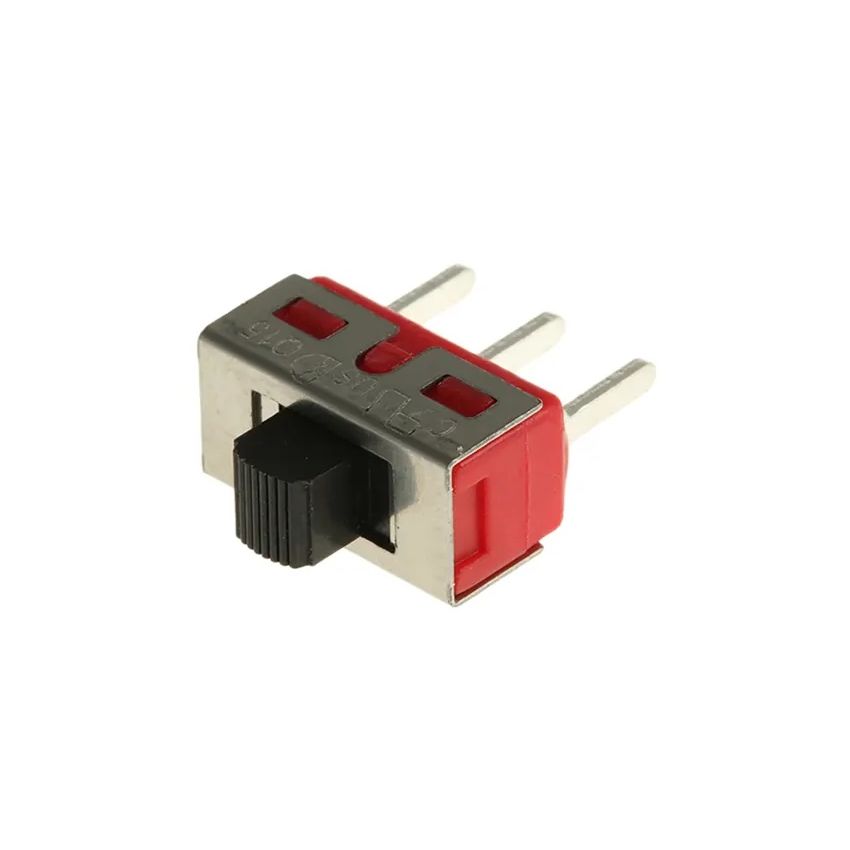

734-7334, Slide Switch, PCB Mount Package

The RS PRO 734-7334 is a high-quality PCB-mounted slide switch designed for reliable performance in various electronic applications. Its SPDT configuration with an On-Off-On operation allows for flexible circuit control. The switch's robust construction, featuring a nylon actuator and stainless steel housing, ensures durability and resistance to environmental factors. With a compact form factor and a mechanical life of 30,000 cycles, this switch is ideal for use in medical instrumentation, domestic appliances, and networking equipment.​

Key Features:

• SPDT Contact Configuration – Single-pole double-throw design provides versatile switching options.​
• On-Off-On Operation – Center-off position allows for dual-circuit control.​
• High Current Rating – Handles up to 5 A at 28 V DC, suitable for various applications.​
• Durable Construction – Features a nylon actuator, DAP case, and stainless steel housing for longevity.​
• Compact Dimensions – Measures 12.7 mm (L) x 6.6 mm (W) x 6.35 mm (D), ideal for space-constrained designs.​
• Extended Mechanical Life – Rated for 30,000 cycles, ensuring reliable performance over time.​

Additional Specifications:

• Type: Slide Switch​
• Switch Function: On,Off,On
• Current Rating: 5A At 28Vdc
• Voltage Rating: 28Vdc
• Acutator Type: Top
