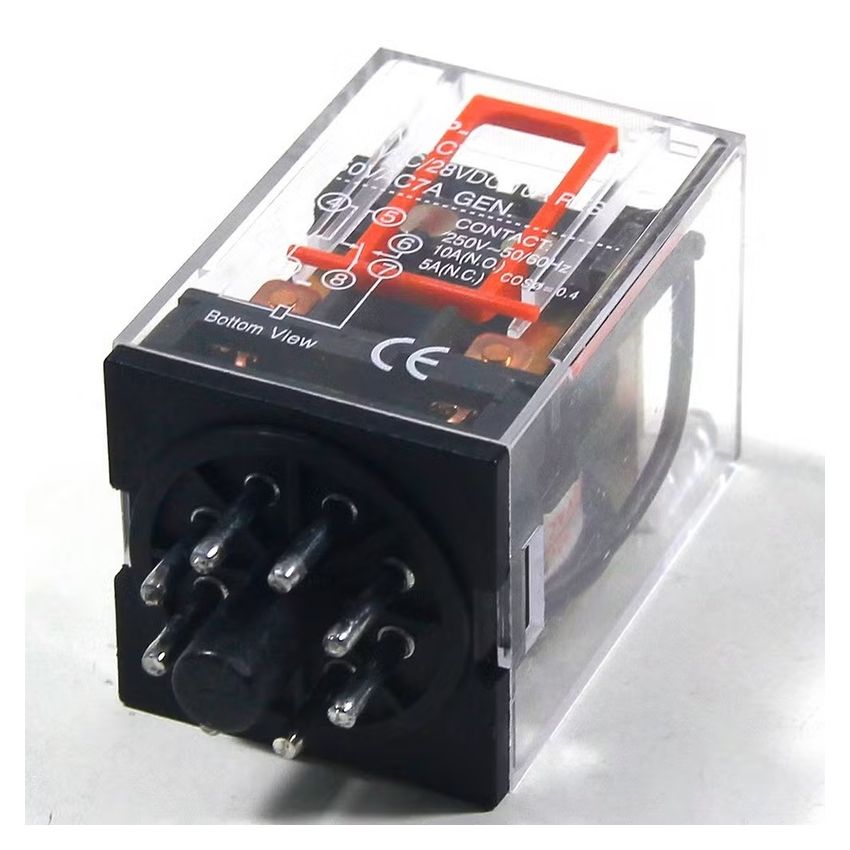

MK2P-I DC24V, General-Purpose Relay, Plug-In Type

The MK2P-I DC24V is a general-purpose electromechanical relay featuring a 24VDC coil and DPDT contact configuration. Its robust design and high switching capacity make it ideal for a wide range of applications, including industrial automation, control panels, and machinery. The relay's built-in mechanical indicator provides easy visual confirmation of its operating status. Its standard 8-pin layout ensures compatibility with common relay sockets like the PF083A-E.​

Key Features:

• DPDT Contact Configuration: Double-pole, double-throw (2 Form C) for versatile switching applications​
• High Switching Capacity: Handles up to 10A at 250VAC or 28VDC, suitable for various applications​
• Built-In Mechanical Indicator: Provides visual confirmation of relay status​
• Standard 8-Pin Layout: Compatible with PF083A-E and similar sockets​
• Durable Construction: Designed for reliable performance in industrial environments​
• Long Electrical Life: Minimum of 100,000 electrical operations​

Additional Specifications:

• Type: Electromechanical Relay
• Number of Channels: 2
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: 28Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A
