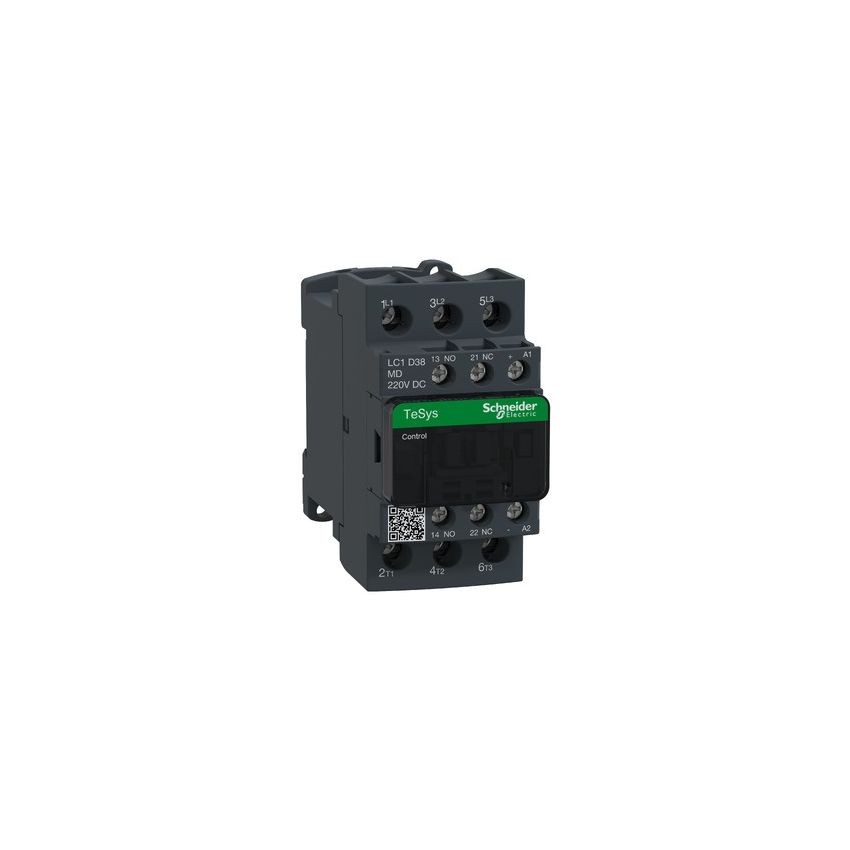

LC1D38MD,TeSys D Contactor, 3P (3NO), 220V DC Coil

The LC1D38MD is a 3-pole contactor from Schneider Electric's TeSys D series, designed for motor control applications. It features a 220V DC coil with a built-in transient suppressor module. The contactor includes 3 normally open (3NO) main contacts and built-in auxiliary contacts (1NO + 1NC). It supports motor control up to 18.5 kW at 400V AC (AC-3) and is suitable for various industrial applications.​

Key Features:

• High Current Capacity – Rated for up to 38A (AC-3) and 50A (AC-1), suitable for demanding motor loads.
• DC Coil with Suppression – Integrated 220V DC coil includes a bidirectional peak limiting diode for effective arc suppression.
• Compact and Modular Design – Fits seamlessly into control panels with DIN rail or screw mounting options.
• Auxiliary Contacts Included – Comes with 1NO + 1NC auxiliary contacts for flexible control and monitoring integration.
• Global Standards Compliance – Certified to IEC, UL, and CSA standards for international use and reliability.
• Optimized for Motor Control – Capable of handling motors up to 18.5 kW at 400V AC, ideal for industrial automation.

Additional Specifications:

• Coil Voltage: 220Vdc
• Contact Form: 3No+1No,1Nc
• Contact Rating (Current): AC-3:38A,AC-1:50A
