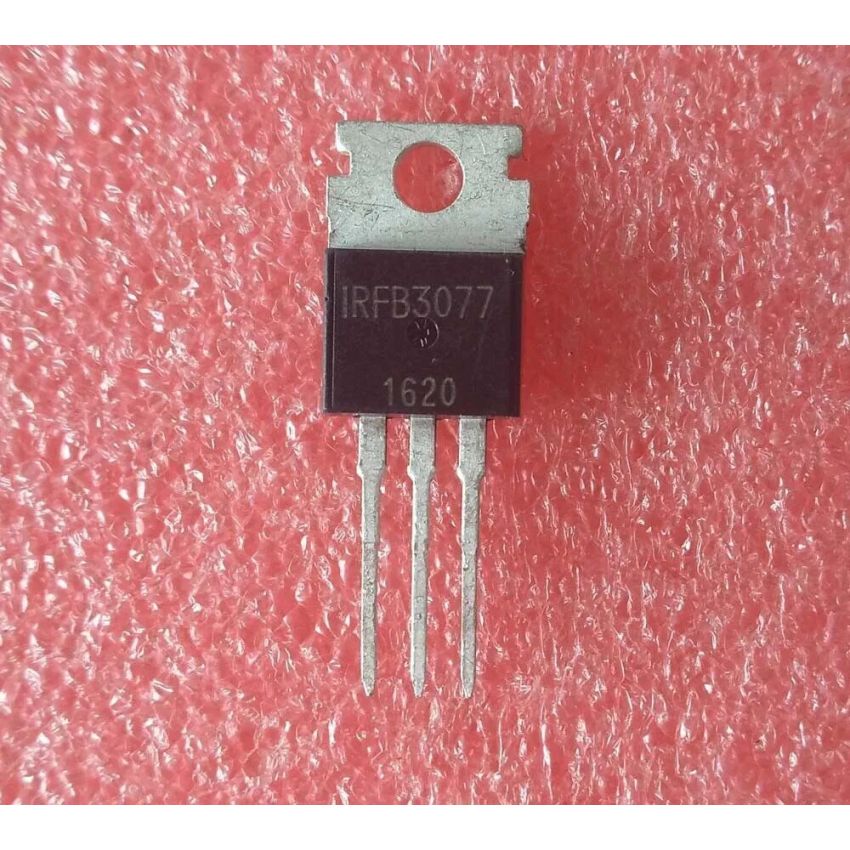

IRFB3077 TO-220-3 ,N-Channel MOSFET - 120A, 75V

The IRFB3077 TO-220-3 N-Channel MOSFET is designed for high-efficiency power switching in demanding applications such as synchronous rectification in SMPS (Switch Mode Power Supplies), motor drives, UPS (Uninterruptible Power Supply), and other high-speed power switching circuits. Featuring a low Rds(on) value of 3.3 mOhm, it provides minimal power loss, ensuring high efficiency in power delivery. This MOSFET is capable of handling a continuous current of 120A, making it suitable for high-power applications requiring reliability and performance under heavy loads.

The device is equipped with advanced dV/dt and avalanche capabilities to enhance ruggedness during transient conditions, ensuring reliable operation in harsh environments. Furthermore, it is 100% avalanche tested, offering confidence in its robustness for critical applications. The TO-220-3 package ensures effective heat dissipation, which is critical in maintaining performance at high power levels.

Key Features :

• High current capability: The device supports continuous drain currents of up to 120A and pulsed drain currents up to 850A, providing reliable performance in high-power applications.
• Ultra-low on-resistance: With an Rds(on) of just 3.3 mOhm, it ensures minimal conduction losses, optimizing power efficiency and reducing heat generation.
• Enhanced ruggedness: Features superior dV/dt handling, making it ideal for hard switching environments and high-stress conditions, ensuring reliable performance in fast-switching circuits.
• High thermal efficiency: Capable of dissipating up to 370W, the TO-220-3 package provides excellent thermal management for demanding applications.
• Fast switching times: The MOSFET has low gate charge and fast switching capabilities, making it suitable for high-frequency circuits that require rapid switching.
• Wide operating temperature range: The device can operate in extreme conditions, with a junction temperature range from -55C to 175C, making it suitable for both industrial and automotive environments.
