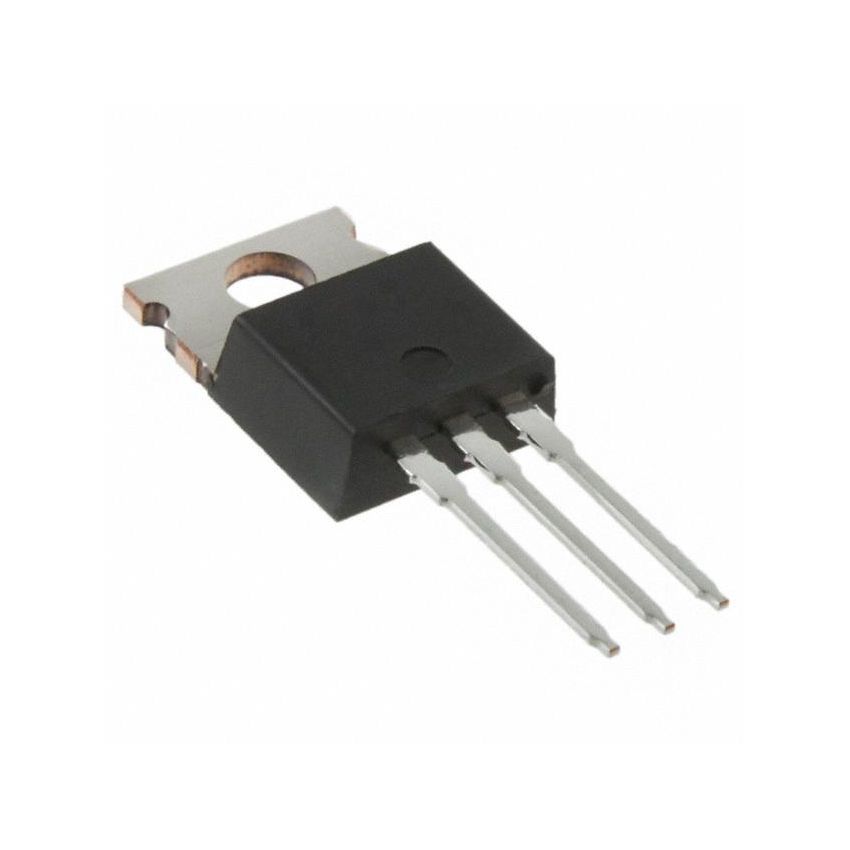

IRL520,N-Channel Logic Level MOSFET,100V 9.2A

IRL520,N-Channel Logic Level MOSFET,100V 9.2A

SKU
SCTx3483
Part Number
IRL520
Brand:
Vishay Intertechnology
Categories:
Semiconductors, Transistors, MOSFET, Vishay Intertechnology
Delivery in 2-5 Weeks.
Out of Stock
Be the first to review this product
Pre-Order
Out Of Stock
Add to Wish List

Notify me when this product is available:

Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The IRL520 is an N-Channel Logic Level Power MOSFET designed for industrial, commercial, and consumer applications requiring high-speed switching and low conduction losses. With a drain-source voltage rating of 100V and a continuous drain current of 9.2A, this MOSFET delivers reliable performance in power electronics, motor controllers, and switching regulators.

Its logic-level gate drive makes it compatible with 5V drive signals, enabling direct interfacing with microcontrollers. The IRL520, housed in a TO-220 package, features a low RDS(on) of 0.27Ohm and supports avalanche-rated operation, ensuring durability in harsh environments.

Key Features :

  • Logic-Level Drive: Operates efficiently with 5V gate drive signals for direct microcontroller interfacing.
  • High Voltage and Current Ratings: 100V drain-source voltage and up to 9.2A continuous drain current.
  • Low RDS(on): 0.27Ohm at VGS = 5V, minimizing power dissipation.
  • Fast Switching: Optimized for high-speed operation with minimal delays.
  • Rugged Design: Avalanche energy-rated for reliable operation under demanding conditions.
  • TO-220 Package: Ensures effective heat dissipation and easy mounting.
More Information
Mounting Style Through Hole
Max Voltage N/A
