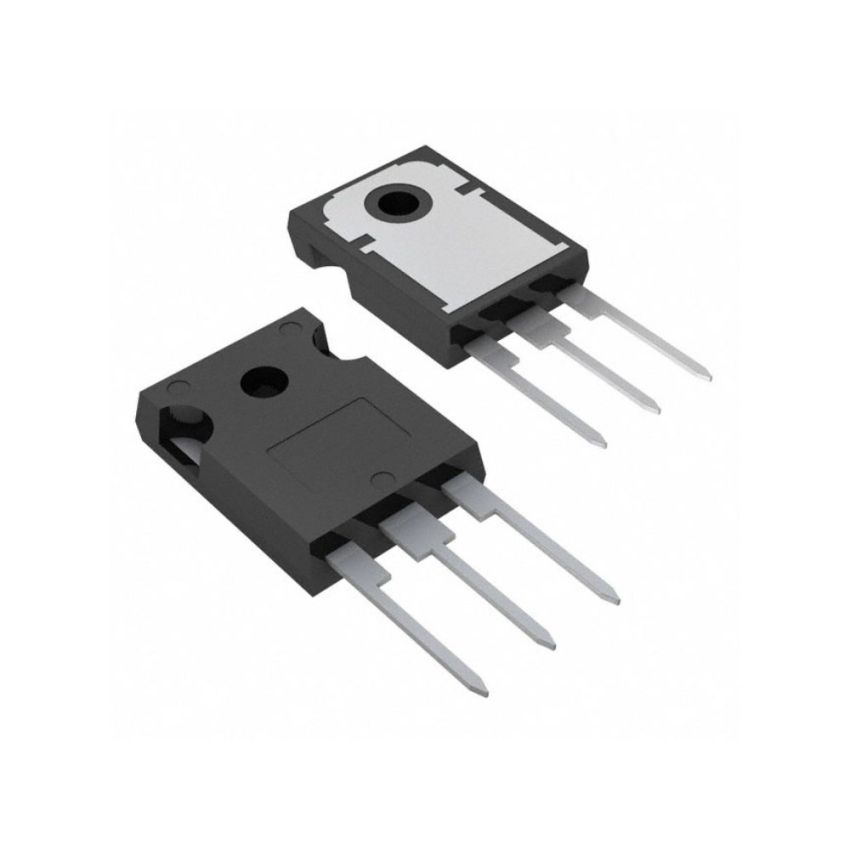

W52NK25Z, N-Channel 250V 52A SuperMESH™ MOSFET, TO-247 Package

The W52NK25Z is an N-channel SuperMESH™ MOSFET designed for high-current, high-speed switching applications. With a drain-source voltage rating of 250V and a continuous drain current of 52A, it is suitable for use in DC choppers, off-line power supplies, adapters, and power factor correction (PFC) circuits. The device features a low typical on-resistance of 0.033 Ω, minimizing conduction losses. Its extremely high dv/dt capability and minimized gate charge make it ideal for high-speed switching applications. The integrated Zener diode protection enhances its ESD capability and protects against voltage transients, ensuring reliable operation in demanding environments.

• Low On-Resistance: Typical R_DS(on) of 0.033 Ω, minimizing conduction losses.
• High dv/dt Capability: Extremely high dv/dt capability, ensuring reliable performance in high-speed switching applications.
• Avalanche Tested: 100% avalanche tested, ensuring ruggedness and reliability.
• Low Gate Charge: Minimized gate charge for efficient high-frequency switching.
• Low Intrinsic Capacitances: Very low intrinsic capacitances, enhancing performance in high-speed applications.
• Zener-Protected Gate: Integrated Zener diode protection enhances ESD capability and protects against voltage transients.
