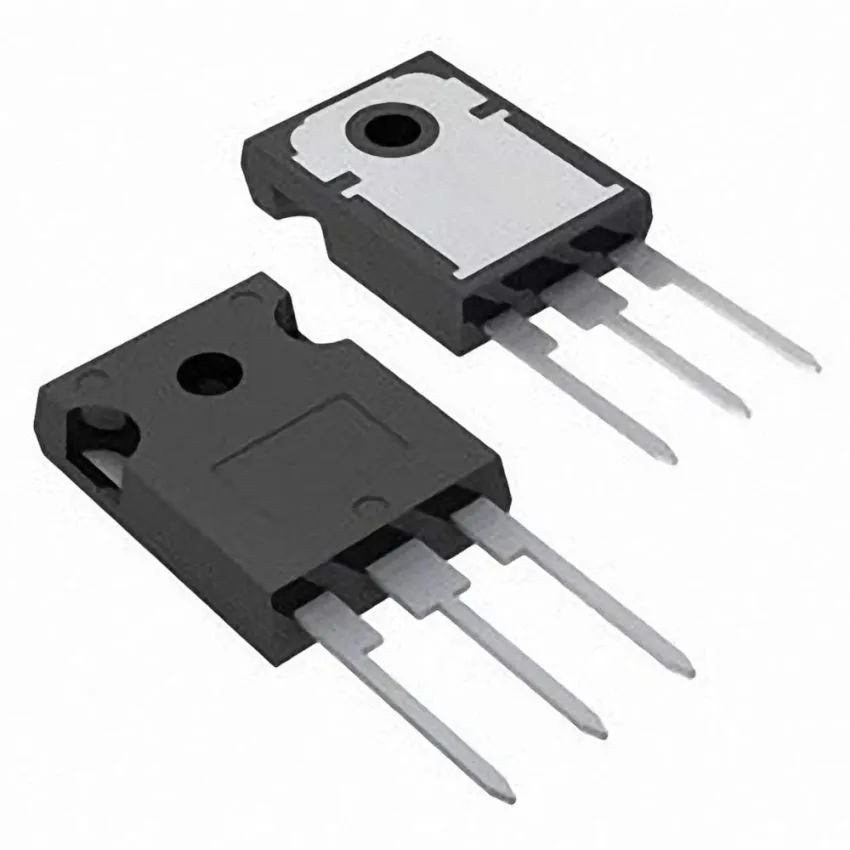

GW20NC60VD,N-Channel IGBT,TO-247

The GW20NC60VD is a high-performance N-Channel IGBT designed for high-voltage, high-frequency applications such as inverters, UPS systems, SMPS, and motor drivers. Featuring a collector-emitter voltage of 600V and a continuous collector current of 30A at 100°C, it delivers reliable power handling with low conduction losses.

Built with Very Fast PowerMESH™ technology, this IGBT is optimized for high-frequency switching, operating up to 50 kHz. The device integrates an ultra-fast recovery antiparallel diode, reducing turn-off losses and enhancing efficiency in hard-switching and resonant topologies.

With a maximum power dissipation of 200W and housed in a TO-247 package, the GW20NC60VD is an ideal solution for industrial automation, power conversion, and energy-efficient electronic designs.

• High Voltage Capability: Supports 600V collector-emitter voltage (V_CEO), making it ideal for high-power switching applications.
• High Current Handling: Delivers 30A continuous collector current at 100°C, with a 60A continuous current rating at 25°C.
• Fast Switching Speed: Optimized for high-frequency applications, operating up to 50 kHz.
• Low Switching Losses: Features very soft ultra-fast recovery antiparallel diode for improved efficiency.
• High Power Dissipation: Rated for 200W power dissipation, ensuring robust thermal performance.
• TO-247 Package: Provides excellent heat dissipation for industrial and power electronic applications.
