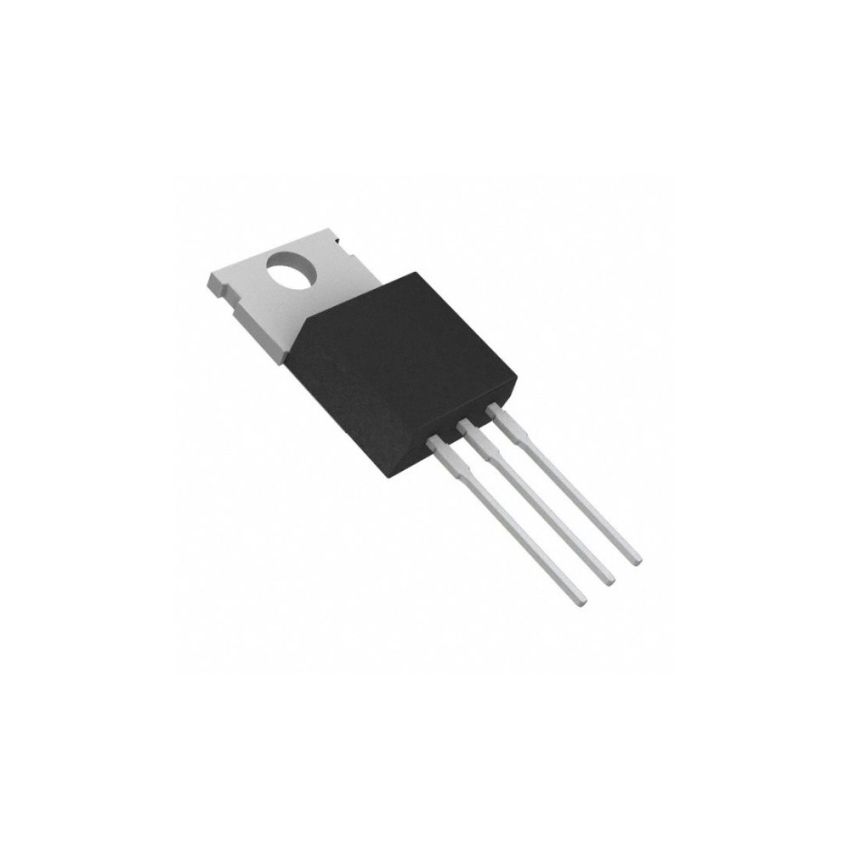

2N6040, PNP Darlington Power Transistor, TO-220 Package

The 2N6040 is a PNP Darlington power transistor designed for general-purpose amplifier and low-speed switching applications. Its high DC current gain and low saturation voltage make it ideal for power control circuits, motor drivers, and relay applications. The TO-220 package ensures robust heat dissipation for efficient operation in demanding applications.

• High DC Current Gain – h_FE = 2500 (Typ) @ I_C = 4.0A, providing strong amplification capabilities.
• High Collector-Emitter Voltage – Withstands a V_CEO of 60V, making it suitable for high-voltage applications.
• Low Collector-Emitter Saturation Voltage – Ensures efficient operation with V_CE(sat) = 2.0V (Max) at I_C = 4.0A.
• Built-in Base-Emitter Shunt Resistors – Integrated resistors improve stability and noise immunity.
• High Collector Current – Capable of handling up to 8A continuous and 16A peak collector current.
• TO-220 Package – Provides excellent heat dissipation and ease of mounting.
