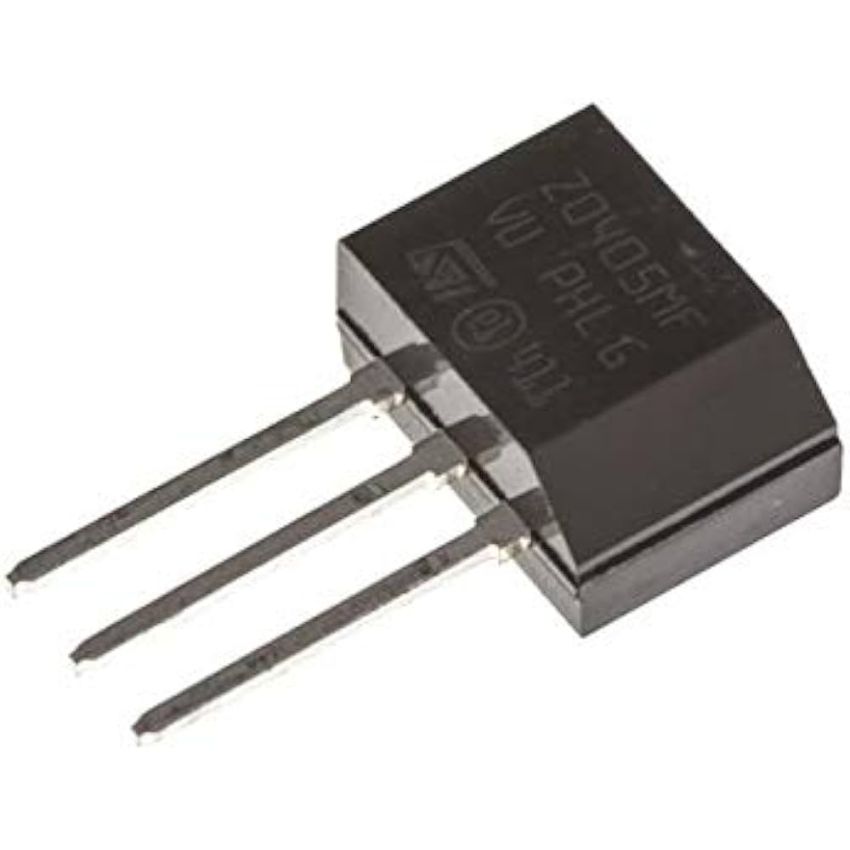

Z0405M,F 4A TRIAC, TO-202-3, 600-800V
JODÂ 1.24
In stock
Guarantee safe & secure checkout
The Z0405MF is a 4A TRIAC designed for general-purpose AC switching applications, ideal for operations such as light dimming, motor control, and heating regulation. This component can handle a peak off-state voltage range from 600V to 800V, supporting both bidirectional current flow and reliable performance across a range of AC loads. Engineered for compatibility with microcontroller systems, the Z0405MF enables efficient control in low-power applications.
Its robust design allows optimized switching performance, while its high surge peak capability ensures durability under heavy loads. This TRIAC is housed in a TO-202-3 package, which offers ease of mounting and integration.Key Features :
- High Voltage Tolerance: Supports 600V to 800V rated repetitive off-state voltage.
- Low Trigger Current Requirement: Trigger current as low as 3 to 25 mA depending on the variant.
- High Surge Peak On-State Current: Can handle non-repetitive peak on-state currents up to 21A.
- Versatile Applications: Suitable for AC switching in applications like lighting control, motor regulation, and household appliances.
- Microcontroller Compatibility: Ideal for direct interfacing with microcontrollers in low-power switching scenarios.
- Durable Package: TO-202-3 package with a thermal junction-to-case resistance for efficient heat dissipation.
| Non Repetitive Surge Peak on-state Current(ITSM) | 21A |
|---|---|
| Gate Trigger Current(Igt) | 3-25mA |
| Gate Trigger Voltage(Vgt) | 1.3V |
| Operating Temperature | -40C To +1 |
| Mounting Style | Through Hole |
| Max Voltage | N/A |
