STW11NB80, N-Channel Power MOSFET, TO-247-3 Package

The STW11NB80 is an N-channel Power MOSFET developed using STMicroelectronics' revolutionary PowerMESH™ technology. This technology associates a strip layout with an optimized vertical structure, resulting in devices with low on-resistance, high switching speed, and superior avalanche characteristics. The STW11NB80 is suitable for high current, high-speed switching applications such as switch mode power supplies (SMPS), DC-AC converters for welding equipment, uninterruptible power supplies, and motor drives.

• High Voltage Capability: Withstands a drain-source voltage (V_DS) of up to 800V, suitable for high-voltage applications.
• High Current Handling: Supports a continuous drain current (I_D) of 11A, accommodating substantial power loads.
• Low On-Resistance: Features a maximum R_DS(on) of 0.65Ω, reducing conduction losses.
• Fast Switching Performance: Designed for rapid switching operations, enhancing efficiency in high-frequency applications.
• Robust Power Dissipation: Capable of dissipating up to 190W, ensuring efficient thermal management.

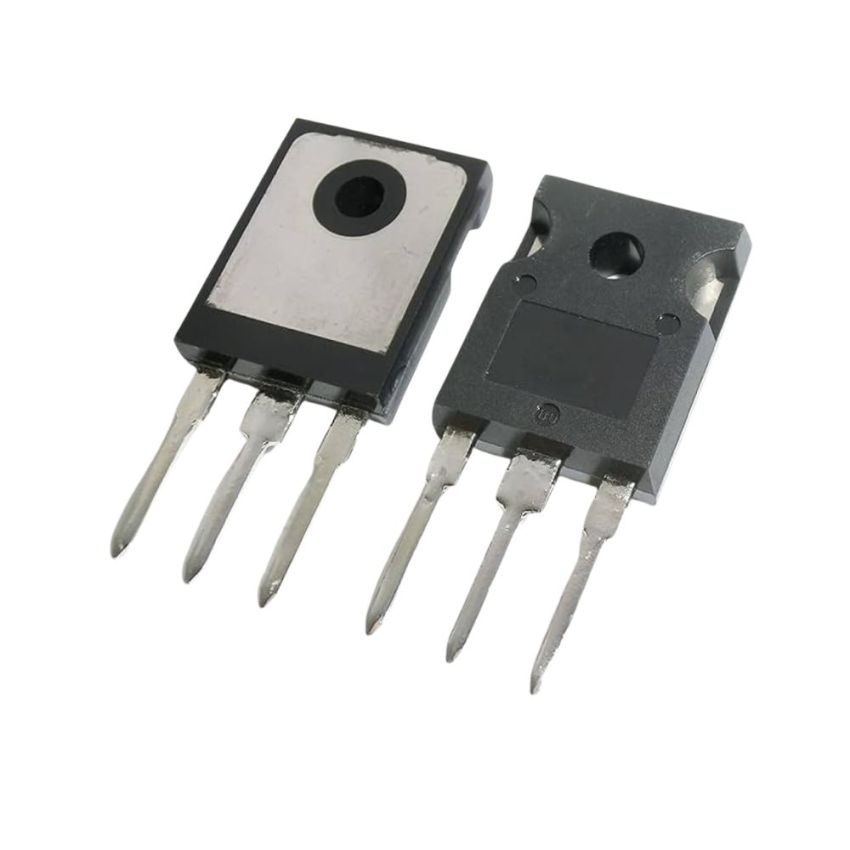

• TO-247-3 Package: Provides excellent heat dissipation and mechanical stability.
