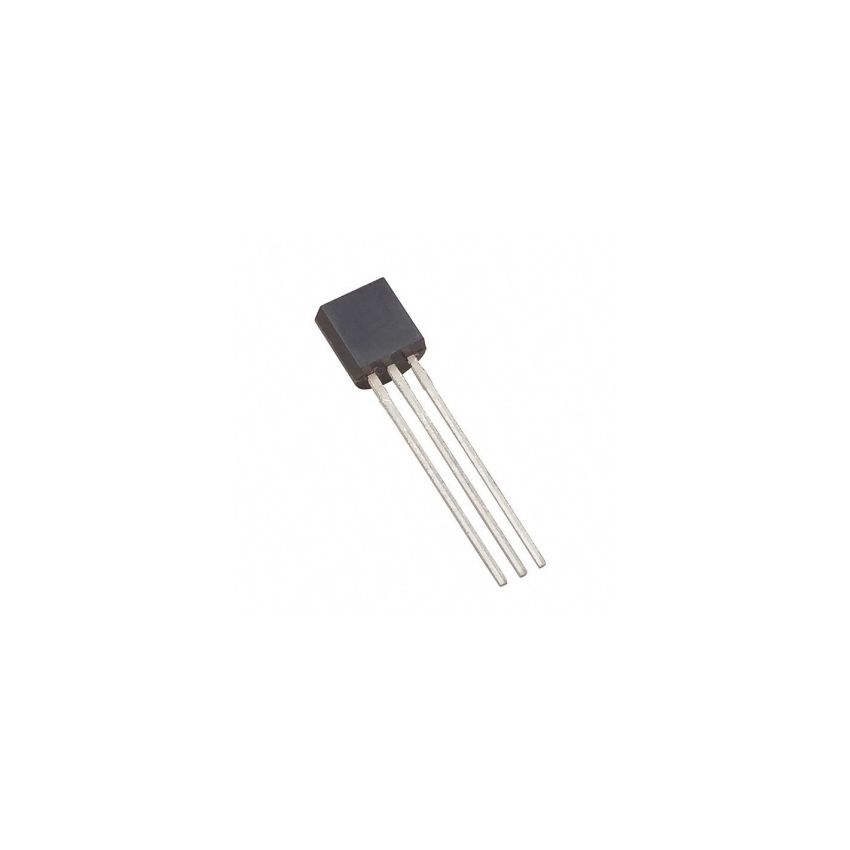

S9018, NPN Transistor - 30V, 15V, 5V, High Gain Bandwidth Product 1.1 GHz

SKU
SCTx2800
Part Number
S9018
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Only 1 left

Guarantee safe & secure checkout

The S9018 is a versatile NPN epitaxial silicon transistor designed for a wide range of high-frequency applications, including AM/FM amplifiers, local oscillators for FM/VHF tuners, and more. With its high current gain bandwidth product of 1.1 GHz (typical), the S9018 delivers excellent performance for RF and high-speed switching applications. Its compact SOT-23 package ensures easy integration into circuits where space is critical.

This transistor offers robust electrical performance with a maximum collector-base voltage of 30V, a collector-emitter voltage of 15V, and an emitter-base voltage of 5V. It is well-suited for designs requiring reliable performance in demanding environments. The S9018's low power dissipation and stable operation make it ideal for industrial and consumer electronics.

Key Features :

  • High Gain Bandwidth Product: 1.1 GHz (typical) for high-frequency applications.
  • Compact SOT-23 Package: Space-saving design for compact circuits.
  • Voltage Ratings: Collector-Base Voltage: 30V, Collector-Emitter Voltage: 15V, Emitter-Base Voltage: 5V.
  • Collector Current: Continuous rating up to 50mA for robust operation.
  • Low Power Dissipation: Maximum of 200mW for efficient energy use.
  • Wide Operating Temperature Range: From -55°C to +150°C for reliable performance in extreme conditions.
Mounting Style Surface Mount
