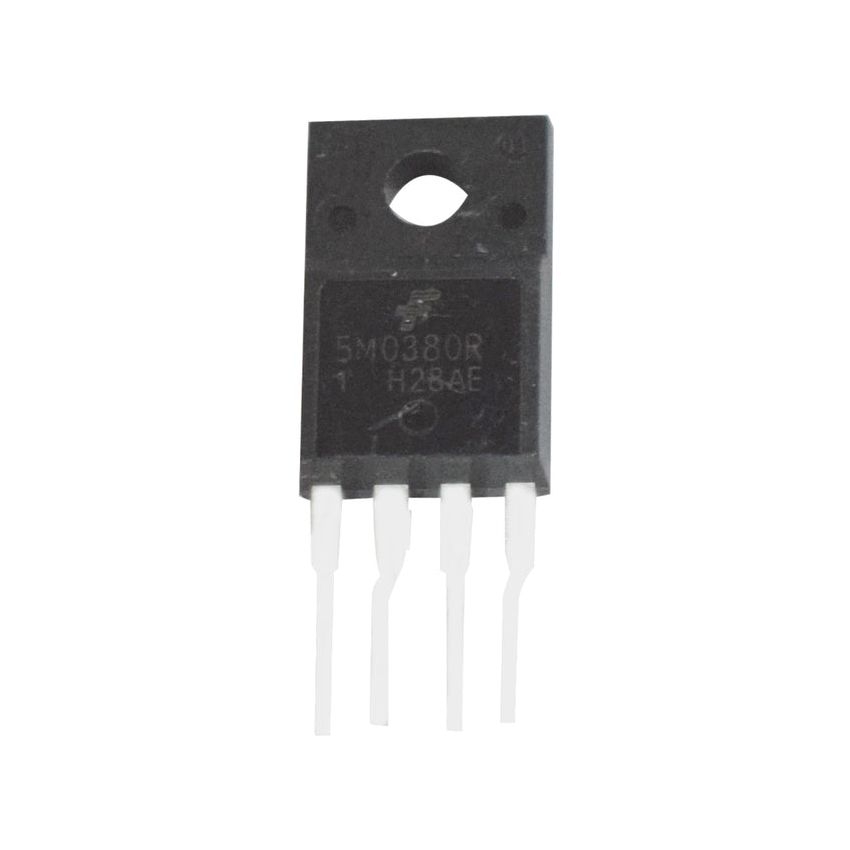

KA5M0380R ,Fairchild Power Switch FPS - 800V, 3A, TO-220F-4

KA5M0380R ,Fairchild Power Switch FPS - 800V, 3A, TO-220F-4

SKU
SCTx2327
Part Number
KA5M0380R
Brand:
Generic
Categories:
Semiconductors, Transistors, Power Management ICs
JOD 1.98
Be the first to review this product
Pre-Order
Estimated Delivery: 2 - 3 Weeks
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

KA5M0380R ,Fairchild Power Switch FPS - 800V, 3A, TO-220F-4 (SKU: SCTx2327)

Guarantee safe & secure checkout

The KA5M0380R Fairchild Power Switch (FPS) integrates a high-voltage power SenseFET and current mode PWM IC, specifically designed for off-line SMPS applications. This device operates at fixed frequencies of 67/50kHz, allowing for efficient power conversion while minimizing external components.

It incorporates built-in protection features such as thermal shutdown, pulse-by-pulse current limiting, and overvoltage protection, making it highly reliable for use in flyback or forward converters. The KA5M0380R is widely used in VCRs, STBs, and adapter circuits due to its robust performance.

Key Features :

  • High-voltage MOSFET integrated (800V, 3A) for reliable power conversion.
  • Precision fixed frequency operation (100/67/50kHz) optimizes efficiency.
  • Pulse-by-pulse current limiting enhances overload protection.
  • Built-in thermal shutdown and overvoltage protection ensure long-term reliability.
  • Operates in either flyback or forward converter topologies.
  • Optimized gate turn-on/turn-off driver minimizes switching losses for improved overall performance.
More Information
Estimated Delivery 2 - 3 Weeks
Package Type TO-220F-4L
Type Fairchild Power Switch
Current 3A
Max Voltage N/A
