IRFPC60LC,N-Channel Power MOSFET,600V,20A

The IRFPC60LC is a high-performance N-Channel Power MOSFET designed for applications requiring high voltage, current handling, and efficiency. With a maximum drain-source voltage of 600V and a continuous current drain of 20A, this MOSFET is ideal for use in power supplies, inverters, motor drives, and other high-power circuits.

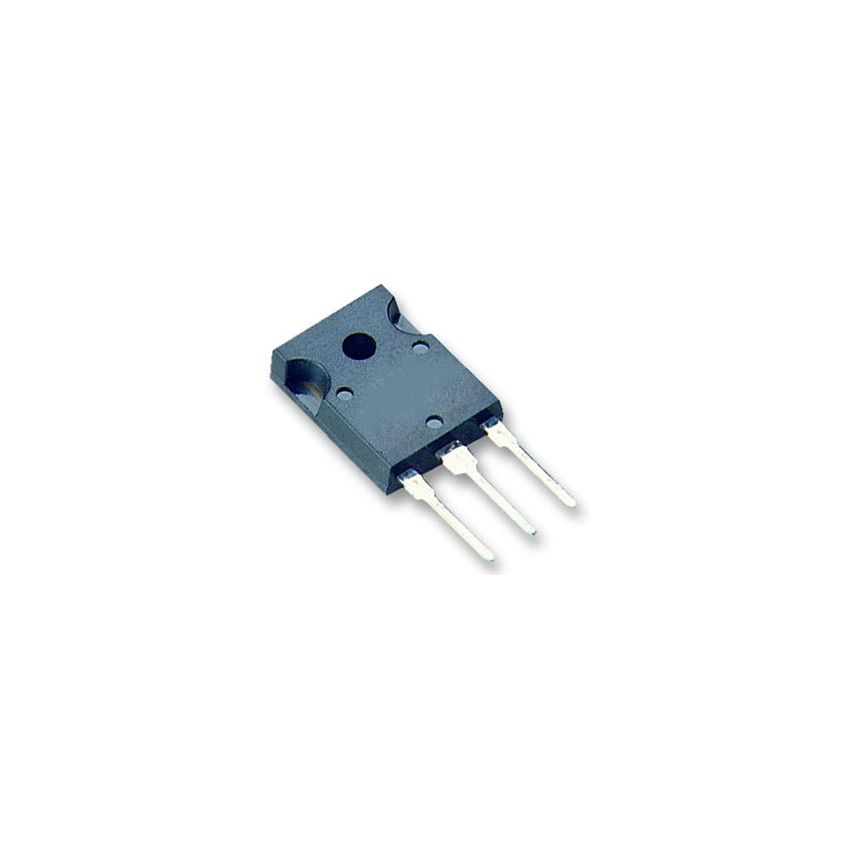

Featuring a typical on-resistance of 0.40Ω, the IRFPC60LC minimizes power losses, enhancing overall efficiency. Its advanced design ensures low gate charge and capacitance, facilitating faster switching and reducing switching losses. The robust TO-247AC package provides excellent thermal performance, enabling higher power dissipation.

This device also supports high avalanche energy and wide thermal limits, making it suitable for demanding environments. Its broad operating temperature range of -55C to 150C ensures reliable performance in industrial, automotive, and commercial applications.Whether you're designing power systems or upgrading existing setups, the IRFPC60LC offers the reliability and performance needed for modern electronic systems.

Key Features :

• High Voltage Rating: Capable of withstanding a maximum drain-source voltage of 600V for high-performance power switching applications.
• Low On-Resistance: Typical Rds(on) of 0.40Ohm ensures efficient power conversion with minimal heat dissipation.
• High Continuous Current Capability: Supports a continuous current drain (Id) of 20A at 25C, making it suitable for demanding applications.
• Reduced Switching Losses: Optimized gate charge and capacitances enable faster switching speeds, improving overall system efficiency.
• Robust Construction: Engineered for enhanced avalanche energy handling and low thermal resistance in a TO-247AC package.
• Wide Operating Temperature Range: Designed to operate between -55C to 150C for industrial-grade reliability.
