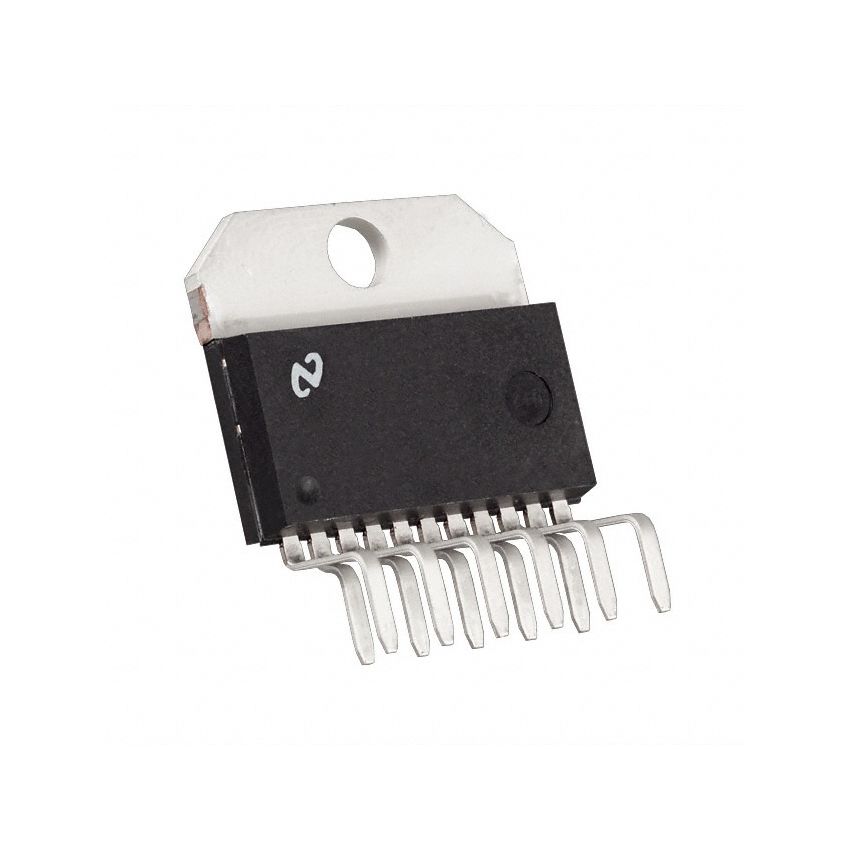

LM3886T, 68W Audio Power Amplifier with Mute, TO-220-11

The LM3886T is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4Ω load and 38W into 8Ω with 0.1% THD+N from 20Hz to 20kHz. Utilizing its Self Peak Instantaneous Temperature (SPiKe) protection circuitry, the LM3886T provides a dynamically protected Safe Operating Area (SOA), ensuring reliability under various fault conditions. The amplifier features an input mute function, output protection from shorts to ground or supplies via internal current limiting circuitry, output over-voltage protection against transients from inductive loads, and supply under-voltage protection, preventing internal biasing when |VEE| + |VCC| ≤ 12V. Packaged in an 11-lead TO-220, the LM3886T is suitable for a wide range of audio applications, including component stereo systems, self-powered speakers, surround-sound amplifiers, and high-end stereo TVs.​

Key Features:

• High Output Power: Delivers 68W continuous average power into a 4Ω load and 38W into 8Ω with 0.1% THD+N from 20Hz to 20kHz.​
• SPiKe™ Protection: Incorporates Self Peak Instantaneous Temperature (SPiKe) protection circuitry, safeguarding against overvoltage, undervoltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks.​
• Mute Function: Features an input mute function for silent turn-on and turn-off transitions.​
• Wide Supply Range: Operates over a wide supply voltage range of ±10V to ±42V (20V to 84V total).​
• Low Distortion: Exhibits extremely low Total Harmonic Distortion plus Noise (THD+N) values of 0.03% at the rated output into the rated load over the audio spectrum.​
• Excellent Signal-to-Noise Ratio: Maintains a signal-to-noise ratio of greater than 92dB with a typical low noise floor of 2.0µV.​

Additional Specifications:

• Package Type: TO-220-11
• Common Mode Rejection Ratio (CMRR): 100Db
• Rail to Rail: No
• Gain Bandwidth Product(GBP): N/A
• Output Current: 11A
