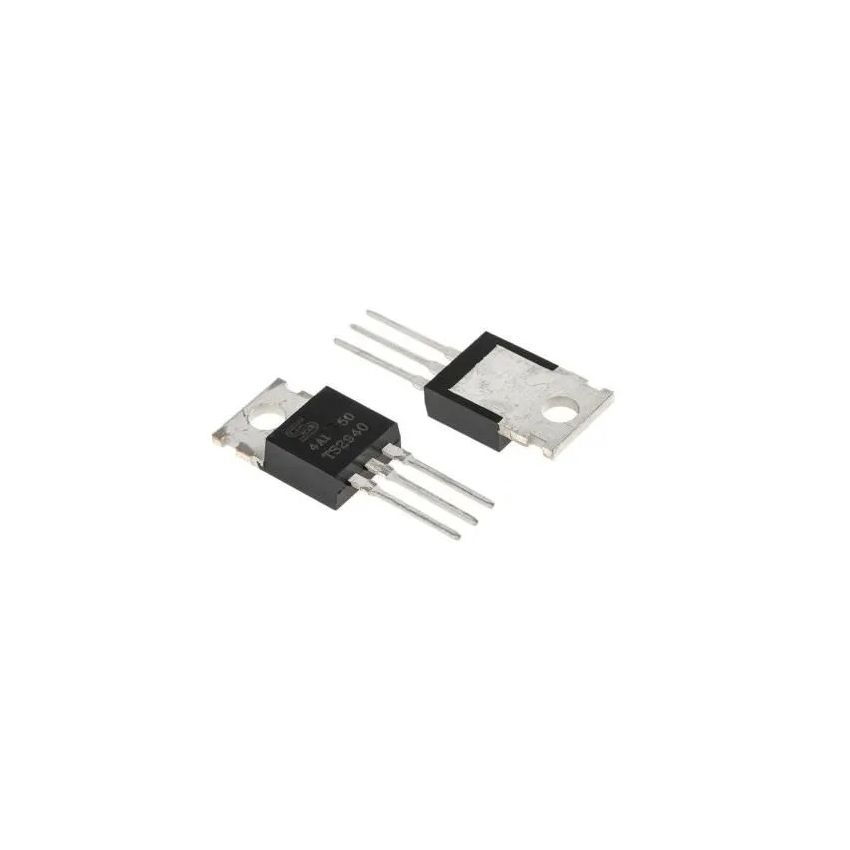

TS2940, 1A Ultra Low Dropout Voltage Regulator, TO-220

The TS2940 series comprises fixed-voltage monolithic micropower voltage regulators designed for a wide range of applications. These regulators are an excellent choice for battery-powered applications, where low dropout voltage and low quiescent current are essential. With features like internal current limiting, thermal shutdown, and a wide input voltage range, the TS2940 ensures reliable and efficient operation in various electronic systems.​

Key Features:

• Ultra Low Dropout Voltage: Typically 0.6V at 800mA load, enhancing efficiency in low-voltage applications.​
• High Output Current Capability: Delivers up to 1A continuous output current, suitable for various power supply needs.​
• Wide Input Voltage Range: Operates with input voltages up to 26V, accommodating diverse power sources.​
• Integrated Protection Features: Includes internal current limit and thermal shutdown for robust performance.​
• Excellent Line and Load Regulation: Ensures stable output with minimal variation due to input voltage or load changes.​
• Multiple Package Options: Available in TO-220, TO-263 (D2PAK), TO-252 (DPAK), and SOT-223 packages for flexible design integration.​

Additional Specifications:

• Package Type: TO-220
• Supply Voltage: 26V
• Current: 1A
• Type: Ultra Low Dropout Voltage Regulator
