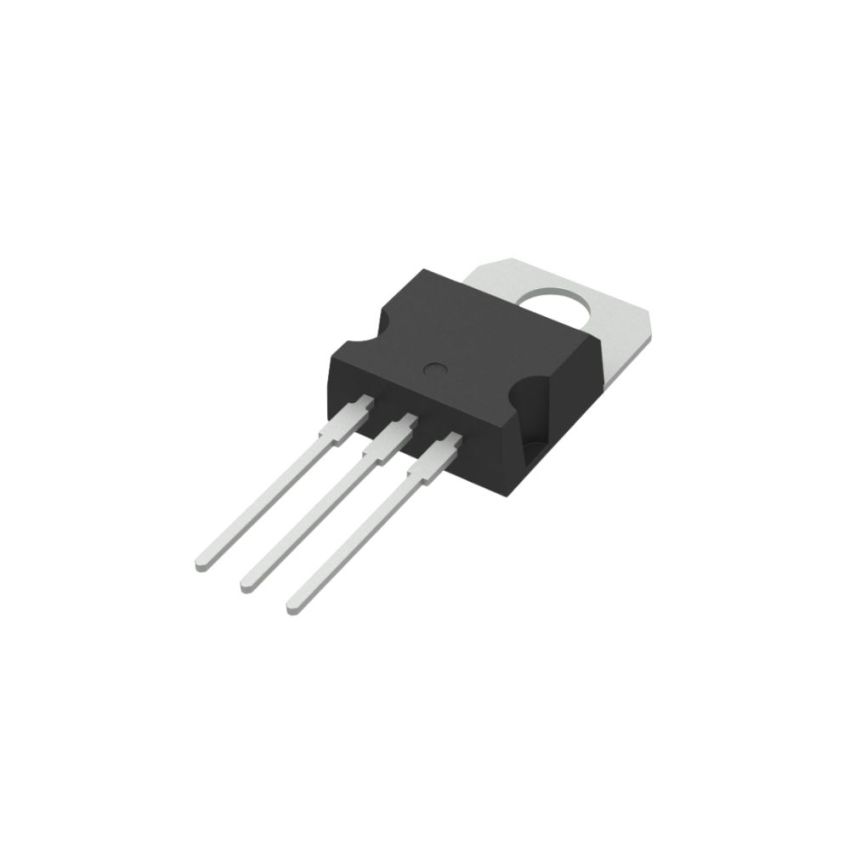

BD536, PNP Silicon Power Transistor, TO-220 Package

The BD536 is a silicon PNP power transistor designed for medium power linear and switching applications. With a collector-emitter voltage rating of 60V and a maximum collector current of 8A, it is suitable for various power control applications. The transistor features low saturation voltage, which improves efficiency in switching operations. Packaged in the TO-220 form factor, it offers efficient heat dissipation and is complementary to the BD535 NPN transistor, making it ideal for push-pull amplifier circuits.
Key Features:

• Collector-Emitter Voltage (V_CEO) of 60V, suitable for medium power applications.
• Maximum DC Collector Current (I_C) of 8A, allowing for substantial current handling.
• Low saturation voltage, enhancing efficiency in switching applications.
• Complementary to BD535 NPN transistor, facilitating push-pull configurations.
• TO-220 package providing efficient heat dissipation and ease of mounting.
• Designed for medium power linear and switching applications.
