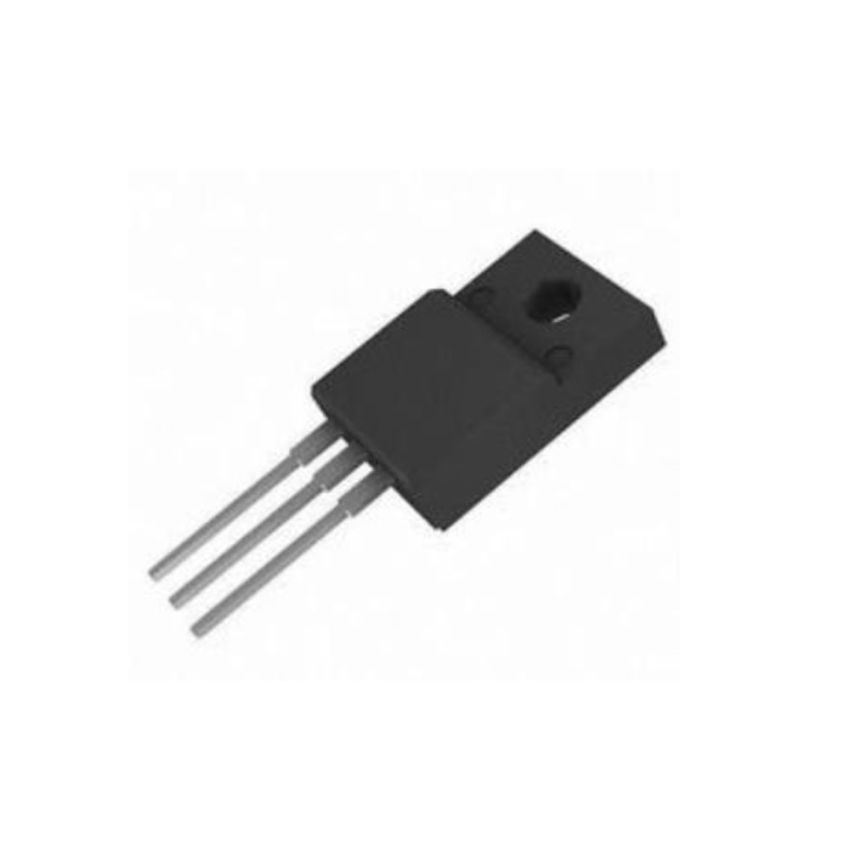

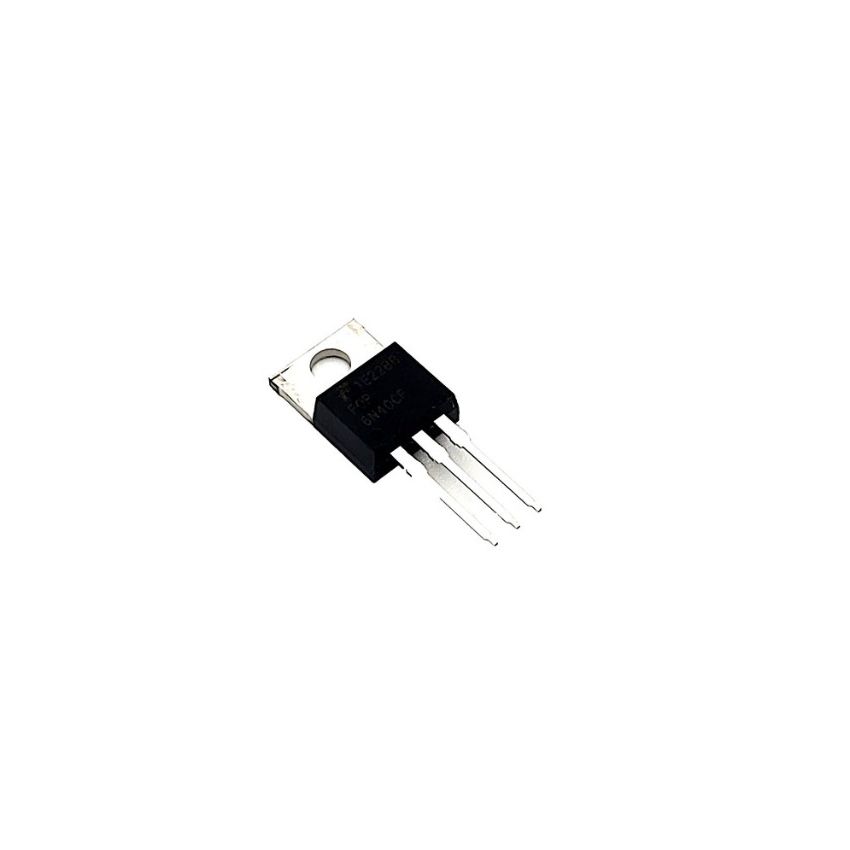

2SK2842, N-Channel MOSFET, TO-220 Package

The 2SK2842 is a silicon N-channel MOSFET housed in a TO-220 package. It is designed for chopper regulators, DC-DC converters, and motor drive applications. The device's low on-resistance, high forward transfer admittance, and high voltage tolerance make it suitable for various high-power applications.

• Low On-Resistance: Exhibits a typical drain-source on-resistance (R_DS(on)) of 0.4 Ω at V_GS = 10V, ensuring efficient current flow with minimal voltage drop.
• High Forward Transfer Admittance: Offers a typical |Y_fs| of 9.0 S, facilitating effective amplification and switching performance.
• High Voltage Tolerance: Withstands a drain-source voltage (V_DSS) up to 500V, suitable for high-voltage applications.
• High Current Capability: Supports a continuous drain current (I_D) of 12A, accommodating substantial power loads.
• Fast Switching Speed: Designed for rapid switching applications, enhancing performance in high-speed circuits.
• TO-220 Package: Provides efficient heat dissipation and ease of mounting.
