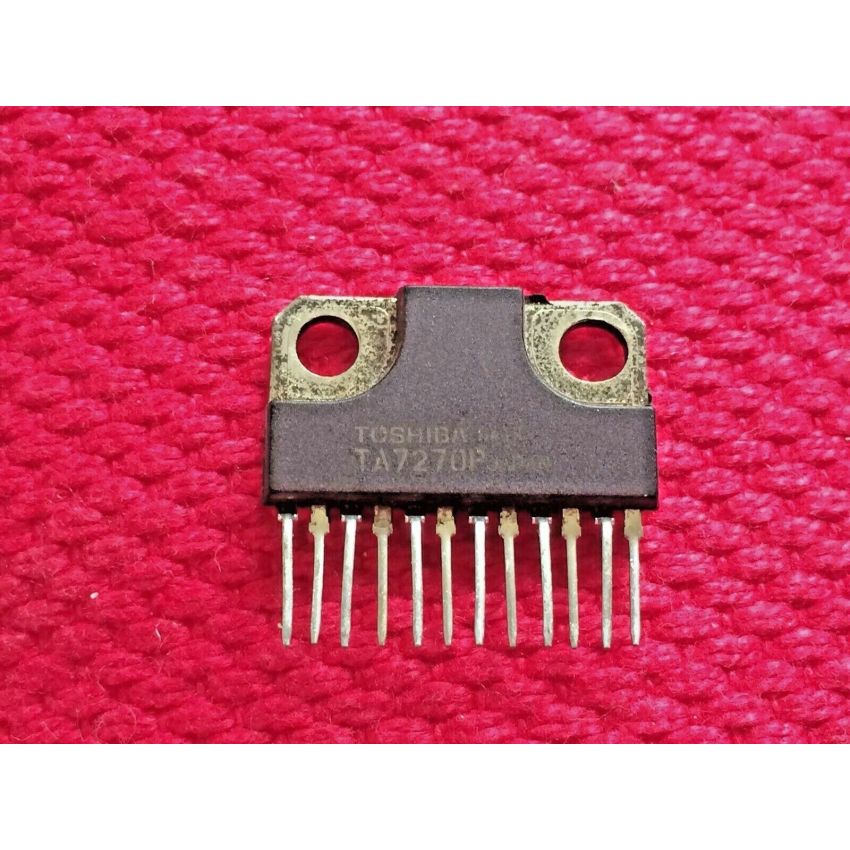

TA7270P ,Dual Audio Power Amplifier IC, 5.8W BTL, 19W High Power Output + Thermal Shutdown, Low Noise Design

The TA7270P is a high-performance dual audio power amplifier developed by Toshiba. It is designed for use in consumer audio applications, providing high output power, low distortion, and exceptional noise reduction. This IC features two configurations: Normal and Reverse pin configurations, making it easier to integrate into PCB designs.

With an operating voltage range of up to 18V and dual amplifier modes, it delivers a high output power of 19W in BTL mode and 5.8W in dual amplifier mode. The TA7270P includes a built-in thermal shutdown feature and over-voltage protection, ensuring reliable performance in demanding conditions. It is suitable for car audio systems, home audio amplifiers, and other audio equipment that require high power and low noise.

Key Features :

• Dual audio amplifier with 19W output power in BTL mode.
• Low distortion rate of 0.03% (BTL mode, 10kHz).
• Operating voltage range: Vcc (op) = 9-18V.
• Built-in thermal shutdown and over-voltage protection.
• Two types of pin configurations for flexible PCB design.
• Low noise performance with a noise level of 1.4 mVrms (DIN 45405 filter).
