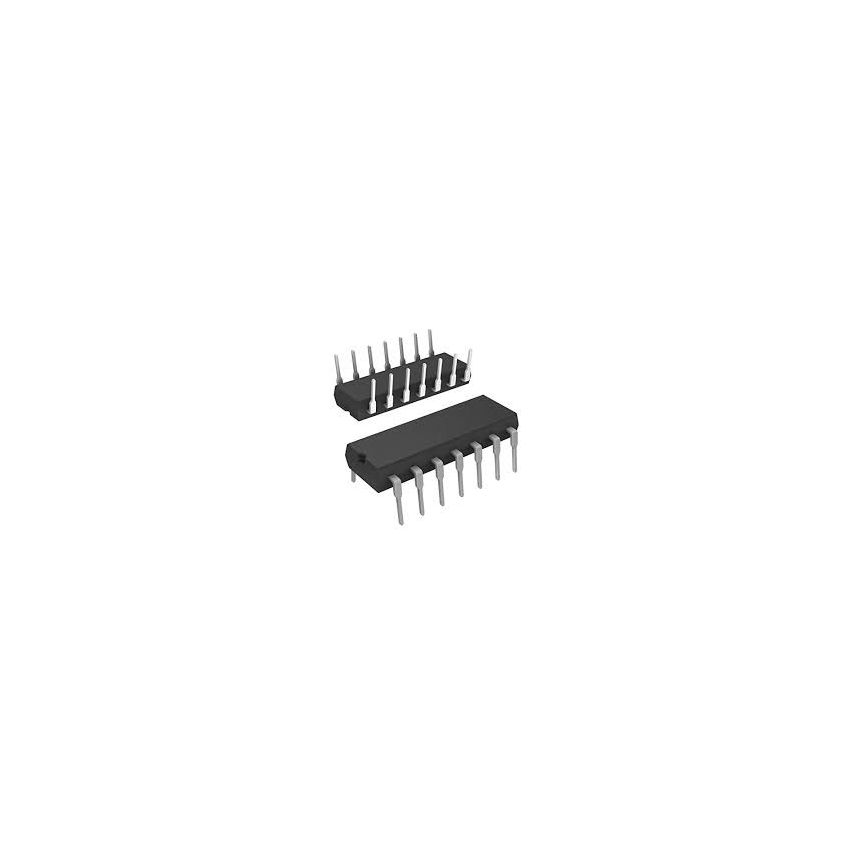

SN7408N Quad 2-Input AND Gate TTL Logic DIP14 Texas Instruments

The SN7408N is a quad 2-input AND gate IC from Texas Instruments, part of the 7400-series logic family known for its wide usage in digital systems. This IC contains four independent AND gates, each capable of performing a 2-input logical AND function, where the output is HIGH only when both inputs are HIGH.

Key Features:

• Quad 2-input positive-logic AND gates
• Operates from a 5V TTL power supply
• Low power dissipation and fast switching (typ. 27 ns delay)
• High noise immunity for robust digital operation
• TTL-compatible inputs and outputs
• DIP-14 through-hole package ideal for prototyping and socket mounting

Additional Specifications:

• Package Type: DIP-14
• Product Type: Quad 2-Input AND Gate
• Input Low Voltage: 0.8V
• Input High Voltage: 2.0V
• Propagation Delay Time: 27 ns
• Logic Gate Type: AND Gate
• Supply Voltage: 4.75V to 5.25V
