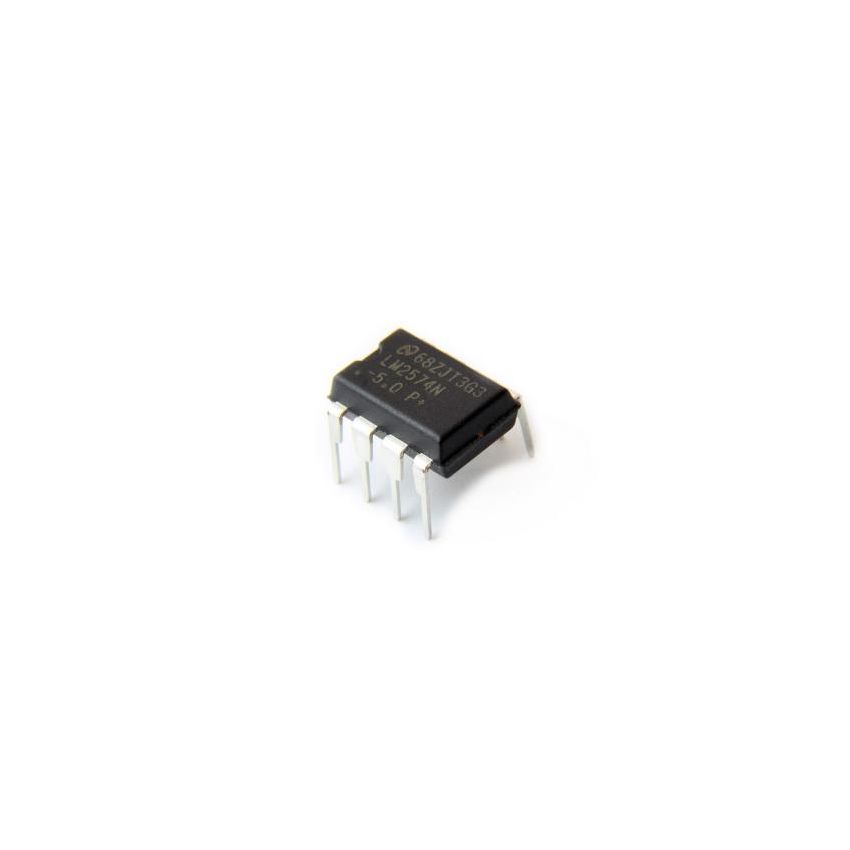

LM2574N-5.0,Step-Down Voltage Regulator,5V, 4.75-40V,DIP-8

The LM2574N-5.0 DIP-8 is a highly efficient step-down voltage regulator designed to provide a fixed 5V output with up to 0.5A of load current. This regulator operates over a wide input voltage range from 4.75V to 40V, making it versatile for various power sources and applications. With its internal oscillator running at 52 kHz, the LM2574N-5.0 ensures smooth and efficient power conversion with low external component count.

The LM2574N-5.0 is equipped with comprehensive protection features such as current limiting, thermal shutdown, and output short-circuit protection, making it a robust choice for low-power electronic devices and systems. The device’s fixed 5V output is ideal for powering microcontrollers, sensors, and other 5V logic-based circuits in applications like battery-powered devices, industrial control systems, and consumer electronics.

Packaged in a compact DIP-8 form, the LM2574N-5.0 is easy to integrate into space-constrained designs. Its high efficiency, combined with its built-in protection and wide input voltage range, makes it a reliable and cost-effective solution for step-down power regulation in both commercial and industrial applications.

• Fixed 5V Output Voltage: Provides a regulated 5V output, ideal for powering various electronic devices.
• 0.5A Output Current: Capable of supplying up to 0.5A, making it suitable for low-power applications.
• Wide Input Voltage Range: Operates from 4.75V to 40V, ensuring compatibility with various power sources.
• Internal Oscillator at 52 kHz: Offers stable switching frequency for efficient power conversion.
• Built-In Protection Features: Includes current limiting, thermal shutdown, and output short-circuit protection to enhance reliability.
• Compact DIP-8 Package: Space-saving design simplifies integration into board layouts.
