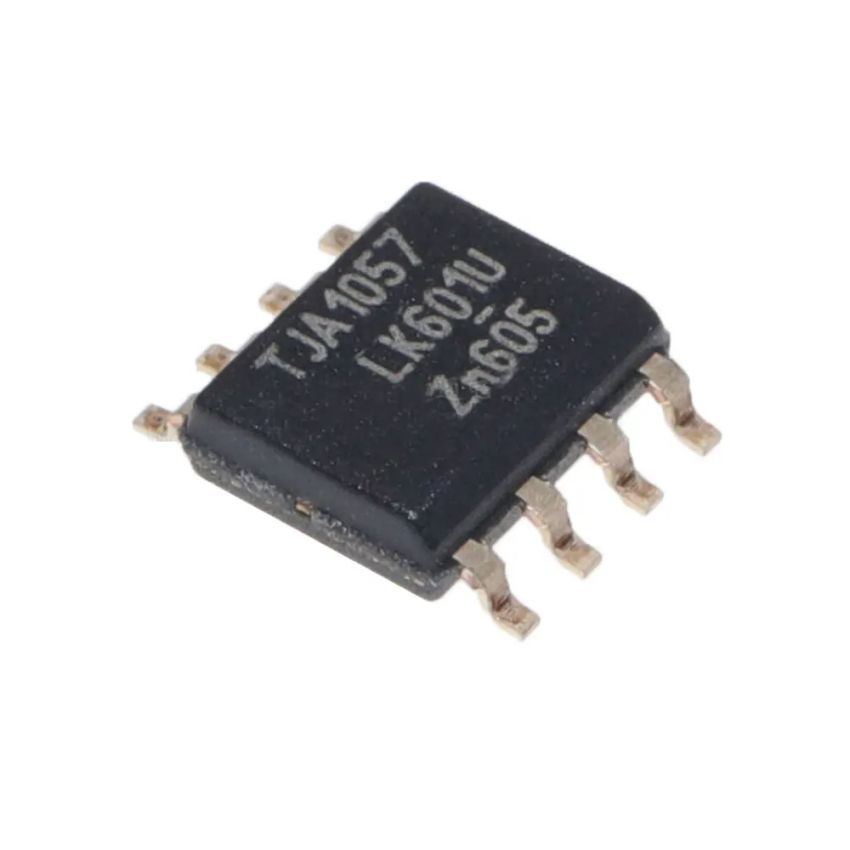

TJA1057T, High-Speed CAN Transceiver, SOIC-8

The TJA1057T is a high-speed Controller Area Network (CAN) transceiver optimized for automotive and industrial applications. It serves as an interface between a CAN protocol controller and the physical CAN bus, ensuring robust communication.

Built to ISO 11898-2:2016 standards, the TJA1057T provides reliable data transmission at rates up to 1 Mbit/s. The Silent mode feature enables ultra-low power consumption, making it ideal for battery-powered and low-energy applications. High ESD protection (8kV IEC), along with overtemperature and short-circuit protection, ensures maximum reliability and durability.

Its differential output structure ensures low electromagnetic emissions (EME) and high electromagnetic immunity (EMI), allowing it to function in harsh environments. Additionally, the direct microcontroller interface (3.3V-5V compatibility) enables easy integration into modern CAN networks.

Encased in a compact SOIC-8 package, the TJA1057T is a superior choice for CAN communication in automotive ECUs, industrial automation, and smart sensor applications.

• High-Speed CAN Transceiver: Supports data rates up to 1 Mbit/s, compliant with ISO 11898-2:2016 and SAE J2284-1 to J2284-5 standards.
• Low-Power Silent Mode: Allows ultra-low power consumption by disabling the transmitter while maintaining bus monitoring.
• Robust Electrical Protection: Features high ESD protection (8kV on CAN pins), overtemperature protection, and bus failure handling.
• Wide Voltage Compatibility: Operates in 12V automotive systems, making it suitable for industrial and in-vehicle networking.
• Direct Microcontroller Interface: Supports 3.3V to 5V microcontrollers for easy integration.
• Compact SOIC-8 Package: Designed for space-efficient PCB layouts with excellent electromagnetic compatibility (EMC).
