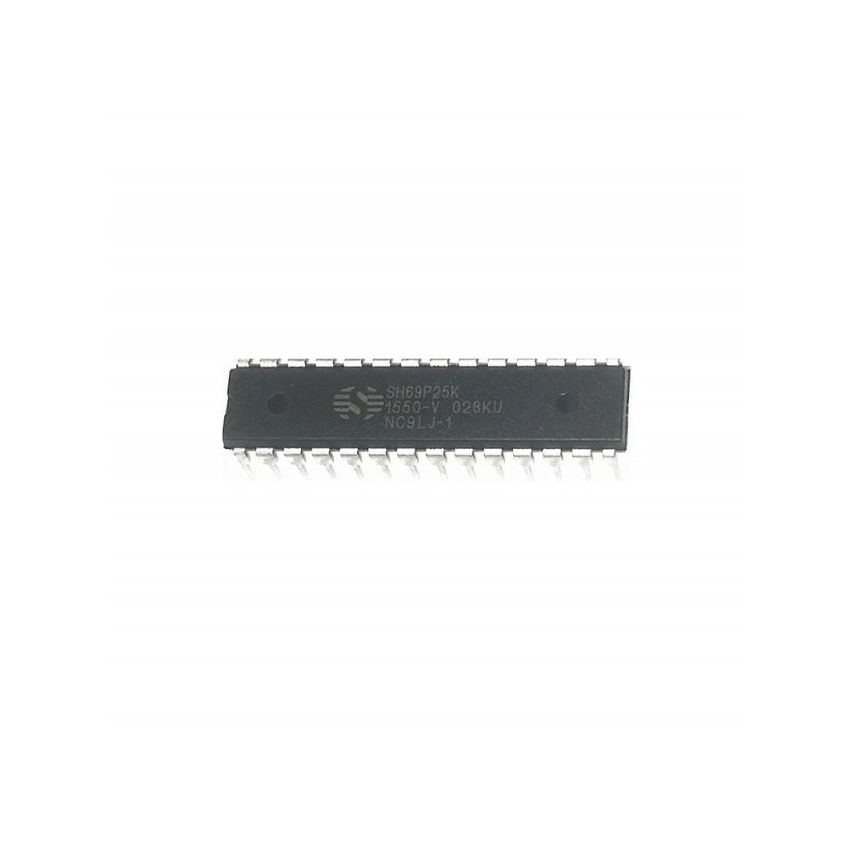

SH69P25K, 4-Bit Microcontroller, DIP-28

The SH69P25K is a 4-bit CMOS microcontroller designed for a variety of embedded applications. It integrates the SH6610C 4-bit CPU core, providing efficient processing capabilities. With 4KB of UV-erasable programmable read-only memory (UVPROM), it allows for reliable code storage and flexibility in firmware development. Equipped with 80 bytes of internal static RAM (SRAM), the SH69P25K offers adequate data handling and temporary storage for various applications. Operating at frequencies up to 4MHz, it is suitable for low-power and cost-sensitive designs. The microcontroller supports dual power supply options, operating at either 2.5V or 5V, providing flexibility to accommodate different power requirements. Packaged in a DIP-28 form factor, it is designed for through-hole mounting, facilitating easy integration into standard PCB designs. The SH69P25K is ideal for applications such as consumer electronics, home appliances, and other embedded systems that require a compact and efficient microcontroller solution. Key Features :

• 4-Bit CMOS Microcontroller: Integrates the SH6610C 4-bit CPU core for efficient processing.
• 4KB UVPROM: Provides 4096 words of UV-erasable programmable read-only memory for code storage.
• 80 Bytes of SRAM: Offers internal static RAM for data handling and temporary storage.
• Operating Frequency up to 4MHz: Suitable for various low-power applications.
• Dual Power Supply Options: Operates at 2.5V or 5V, providing flexibility for different power requirements.
• DIP-28 Package: Standard 28-pin Dual In-line Package for easy integration into through-hole designs.
