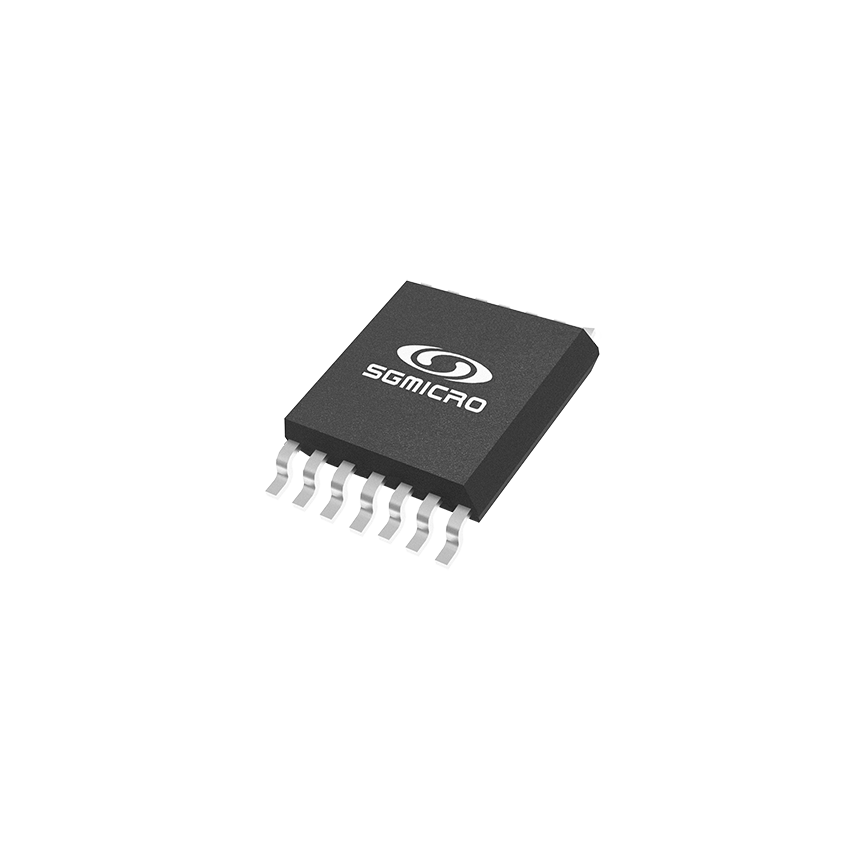

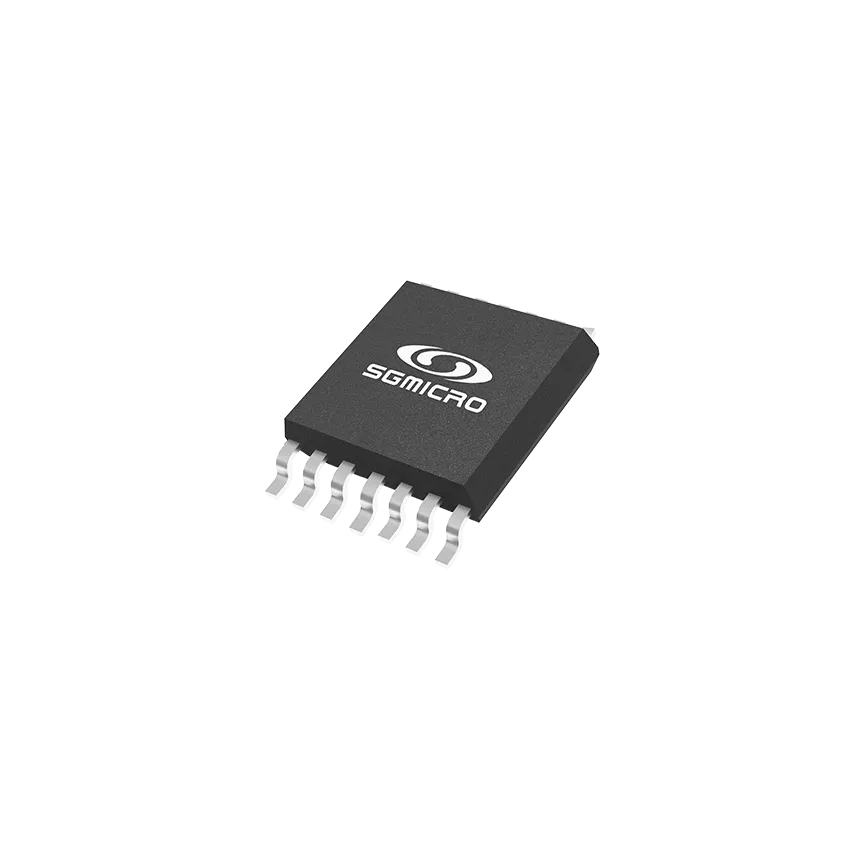

SGM9125, 5-Channel 5th-Order Standard Definition Video Filter Driver, TSSOP-14

The SGM9125 is a 5-channel, 5th-order standard-definition video filter driver IC designed for set-top boxes, video amplifiers, and high-performance display applications. It integrates low-pass filters and rail-to-rail output drivers, ensuring high-quality video signal processing with minimal distortion.

Featuring a -3dB bandwidth of 8MHz and a slew rate of 35V/µs, the SGM9125 enhances video clarity and reduces out-of-band noise in cable TV systems, DVD players, HDTVs, and portable video devices. It supports DC- and AC-coupled inputs, allowing for flexible system integration with video encoders and DACs.

The low-power design of the SGM9125 makes it ideal for portable devices, while its TSSOP-14 surface-mount package allows for efficient PCB space utilization. With its ability to replace multiple passive components, the SGM9125 reduces circuit complexity and improves video signal performance in modern digital display and broadcast systems.

• 5-Channel Video Signal Processing: Includes 5 independent video input channels for multi-source signal filtering.
• 5th-Order Low-Pass Filter: Integrated 8MHz -3dB bandwidth filter ensures high-quality video signal processing.
• Rail-to-Rail Output Driver: Delivers 6dB output gain, providing strong and stable signal transmission.
• Low Power Consumption: Operates with an ultra-low quiescent current of 44mA, making it ideal for battery-powered applications.
• Flexible Input and Output Coupling: Supports both AC- and DC-coupled configurations, ensuring easy system integration.
• Compact TSSOP-14 Package: Surface-mount design (SMD) for efficient PCB layout in compact devices.
