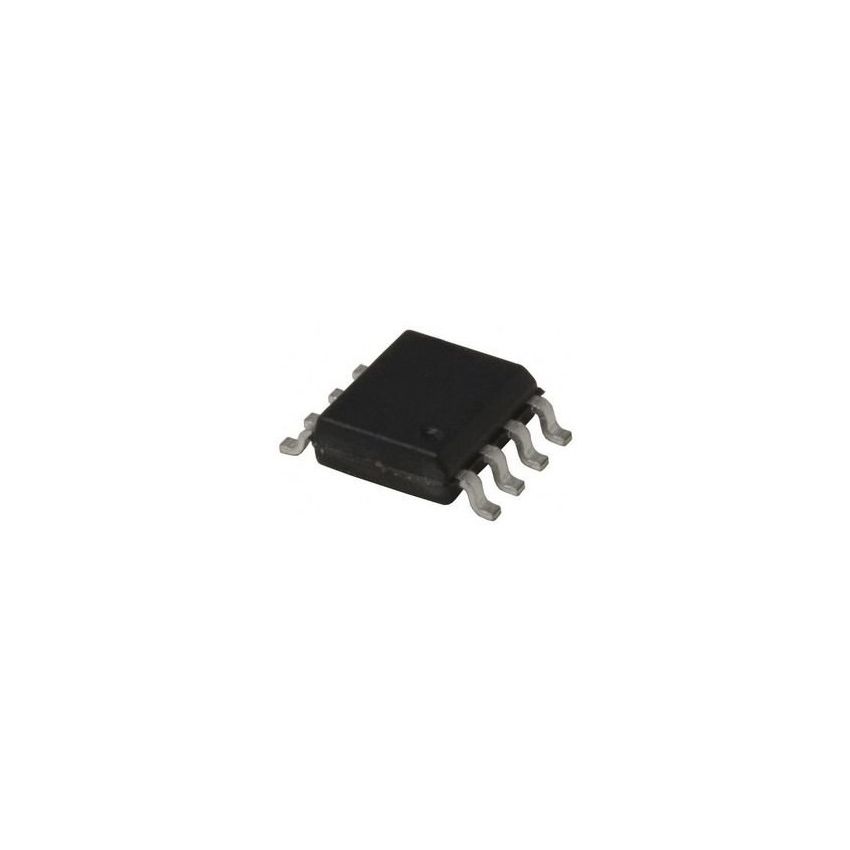

VN750SM,High-Side Driver,6A, 5.5-36V,SOP-8,

The VN750SM is a high-side driver designed in STMicroelectronics VIPower M0-3 technology. This monolithic device is intended for driving loads with one side connected to ground. It features CMOS-compatible input, open load detection, and shorted load protection, making it ideal for automotive and industrial applications. With integrated protection mechanisms such as under-voltage, over-voltage shutdown, and thermal shutdown, the VN750SM ensures robust performance even in harsh environments.

The VN750SM operates with a supply voltage range of 5.5V to 36V and delivers a maximum output current of 6A, with an on-state resistance of 55 mΩ at 25°C. The device is reverse battery protected and has very low standby current, making it an efficient solution for power management applications. Its integrated current limitation and automatic restart functionality further enhance its reliability.

Packaged in a compact SOP-8 format, the VN750SM offers a small footprint, ideal for space-constrained designs. Whether used in motor control, lighting systems, or industrial automation, the VN750SM provides a high level of integration, simplifying system design and reducing component count.

• High-Side Driver: Designed with STMicroelectronics VIPower M0-3 technology, providing a reliable solution for driving loads connected to ground.
• CMOS Compatible Input: Supports easy interfacing with control logic, making it ideal for automotive and industrial systems.
• Advanced Protection Features: Includes under-voltage, over-voltage, thermal shutdown, and reverse battery protection, ensuring reliable performance in demanding conditions.
• High Output Current: Capable of delivering up to 6A output current with an on-state resistance of 55 mΩ at 25°C, optimizing power efficiency.
• Open Load Detection: Detects open load conditions both in the on and off states, improving diagnostic capabilities for the system.
• Compact SOP-8 Package: Small form factor allows easy integration into compact or space-constrained designs.
