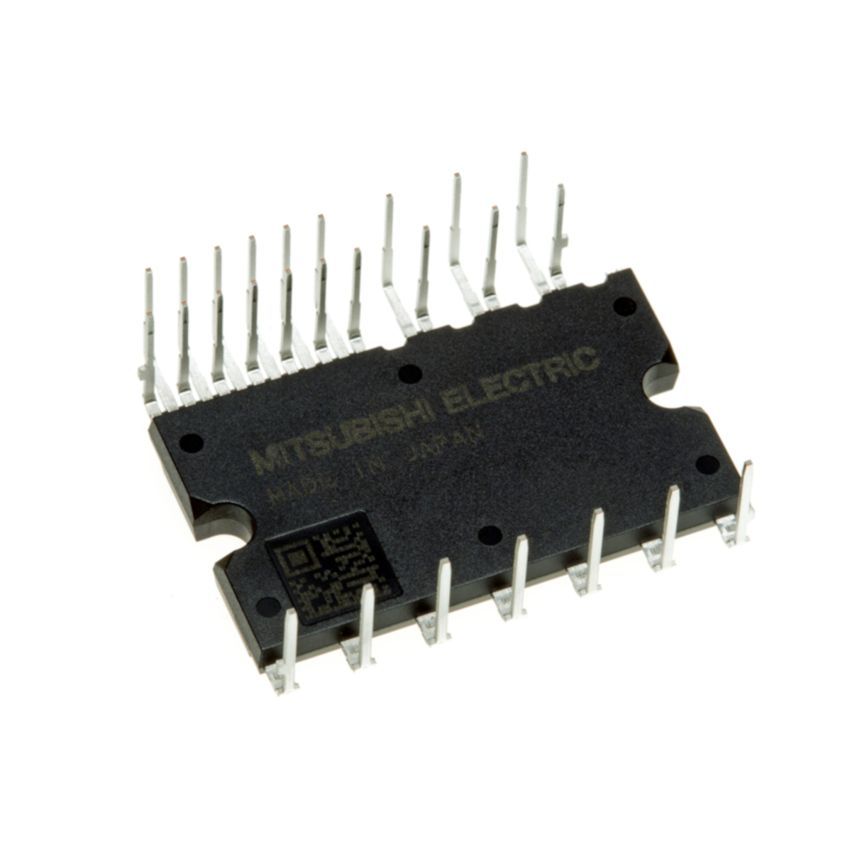

SLIMDIPL Intelligent Power Module 600V 5A DIP Inverter Motor Drive

The SLIMDIP-L is a compact Intelligent Power Module (IPM) from Mitsubishi Electric, optimized for low-power inverter motor drive applications. Housed in a SLIMDIP package, this IPM integrates a 3-phase inverter stage consisting of IGBTs and gate drivers with built-in protection features, making it ideal for applications such as fan motors in air conditioners, refrigerators, and washing machines.

Key Features:

• Integrated 3-phase inverter with IGBTs and protection functions
• Low-loss, short-circuit rated 600V/5A IGBT output stage
• Internal bootstrap diodes for high-side drive supply
• UVLO protection for both high and low sides
• Fault output for thermal and overcurrent protection
• Designed for low-noise, energy-efficient appliance drives

Additional Specifications:

• Package Type: SLIMDIP
• Supply Voltage: 600V
• Current: 5A
• Type: 3-Phase Inverter IPM
