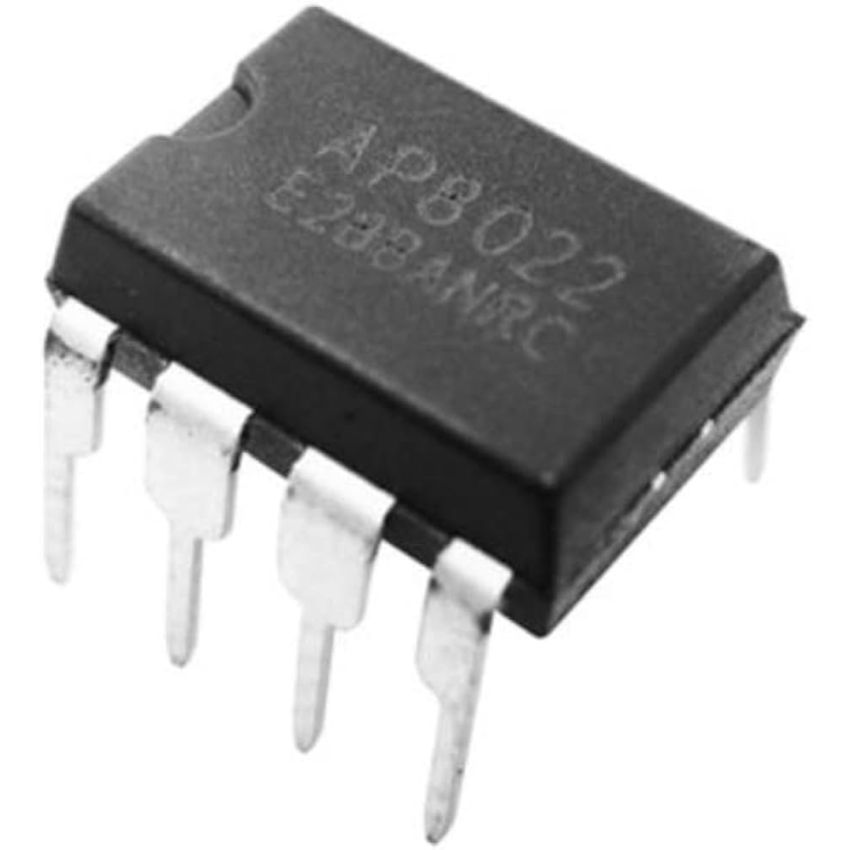

AP8022 DIP-8 - Low Standby-Power Off-line PWM Controller, 85-265VAC

The AP8022 DIP-8 is a highly integrated low standby-power off-line PWM controller designed for efficient power conversion in various small household and industrial power supplies. This device features a built-in power MOSFET, overvoltage and overcurrent protection, soft-start capability, and frequency modulation to ensure low EMI performance.

Its wide input voltage range (85-265VAC) and high-efficiency design make it ideal for power supplies with low standby energy consumption. The AP8022 ensures reliable operation with cycle-by-cycle current limiting and thermal shutdown protection.

Key Features :

• Integrated 800V avalanche rugged power MOSFET.
• Low standby power consumption with burst mode.
• Built-in soft-start function for smooth operation.
• Over-temperature and over-current protection.
• Frequency modulation for improved EMI performance.
• 10W output power in a semi-enclosed design at 85-265VAC.
