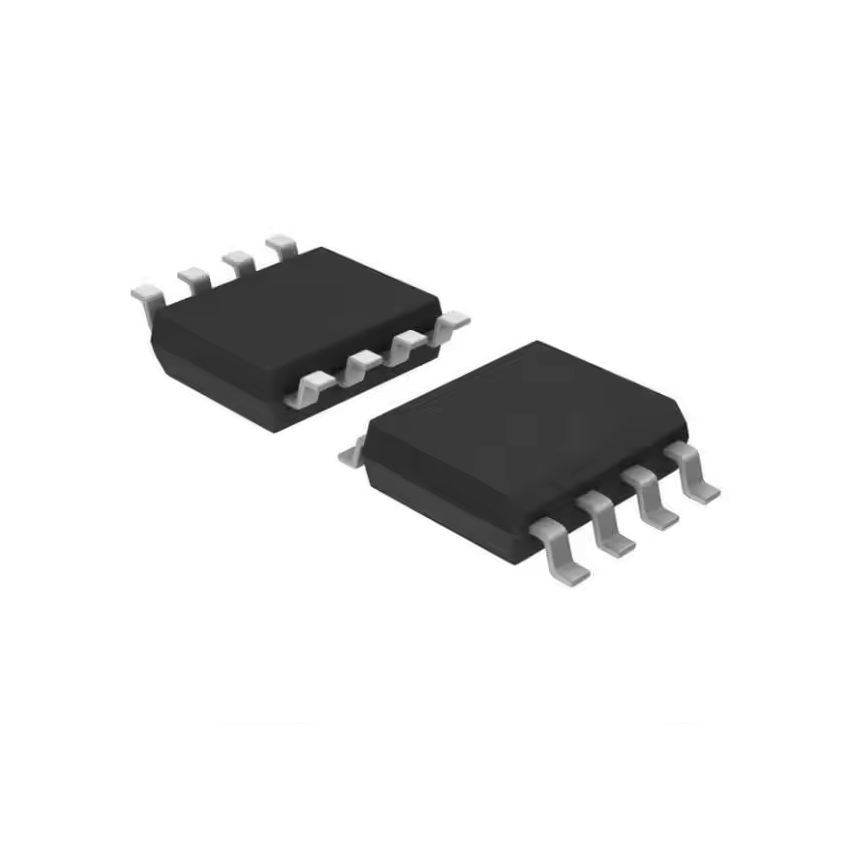

FAN7390, High-Side and Low-Side Gate Driver, 600V Half-Bridge Driver IC, SOP-8 Package Type

The FAN7390 from ON Semiconductor is a high-voltage half-bridge gate driver IC that can drive both high-side and low-side N-channel MOSFETs or IGBTs. Packaged in a compact SOP-8 format, it is capable of operating with bootstrap voltages up to 600V, making it ideal for use in motor drives, DC-DC converters, and power inverters.

Key Features:

• 600V high-voltage half-bridge driver
• Drives both high-side and low-side N-channel MOSFETs or IGBTs
• Internal dead-time and shoot-through protection
• 3.3V and 5V logic level input compatible
• Built-in under-voltage lockout (UVLO) for both high- and low-side
• Fast switching with matched propagation delays

Additional Specifications:

• Package Type: SOP-8
• Supply Voltage: 10V to 20V
• Current: 500 mA
• Type: Half-Bridge Gate Driver
