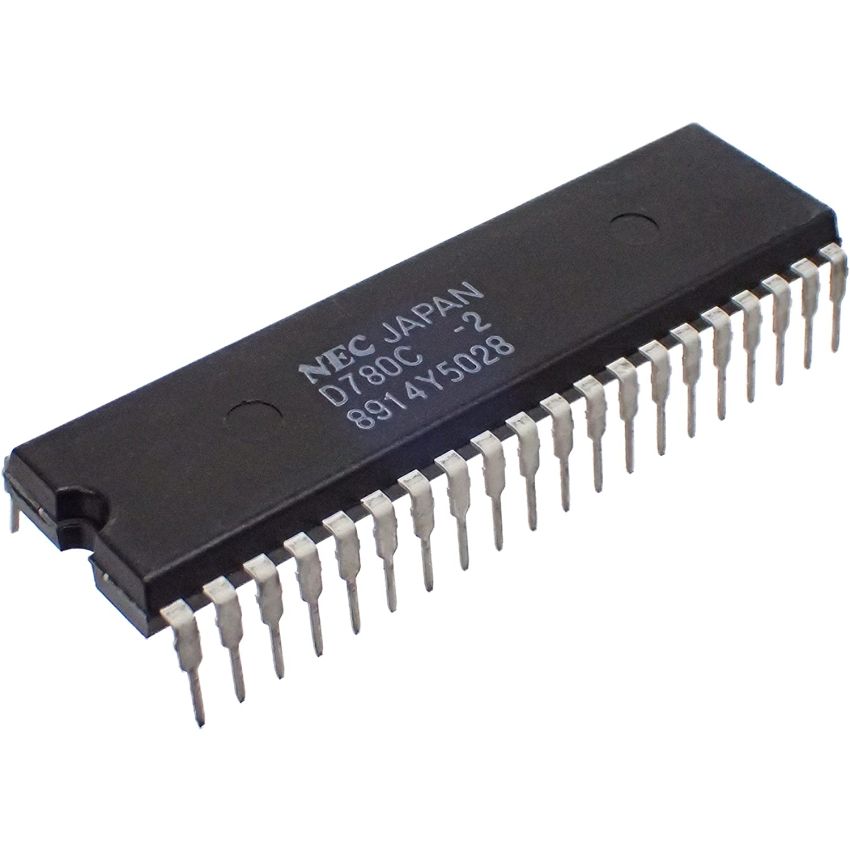

D780C-2, 8-Bit Microprocessor, DIP-40

The D780C-2 is a high-performance 8-bit microprocessor compatible with the Z80 architecture, operating at a clock frequency of up to 6 MHz. Housed in a 40-pin Dual In-Line Package (DIP-40), it integrates a comprehensive instruction set of 158 types, supporting complex operations with minimal external circuitry. The processor features a vectored, multilevel interrupt structure and a dual register set, enabling efficient context switching and responsive performance. Additionally, it supports automatic refreshing of external dynamic memory and provides TTL-compatible signals for straightforward interfacing with standard logic devices.

• High-Performance 8-Bit Microprocessor: Delivers efficient processing capabilities for a variety of embedded applications.
• Z80-Compatible Instruction Set: Ensures compatibility with a wide range of existing software and development tools.
• Vectored, Multilevel Interrupt Structure: Provides a robust interrupt handling mechanism for responsive system performance.
• Dual Register Set Architecture: Enhances processing efficiency by allowing quick context switching.
• Dynamic Memory Refresh Support: Automatically refreshes external dynamic memory, simplifying system design.
• TTL-Compatible Signals: Facilitates easy interfacing with standard logic devices.
