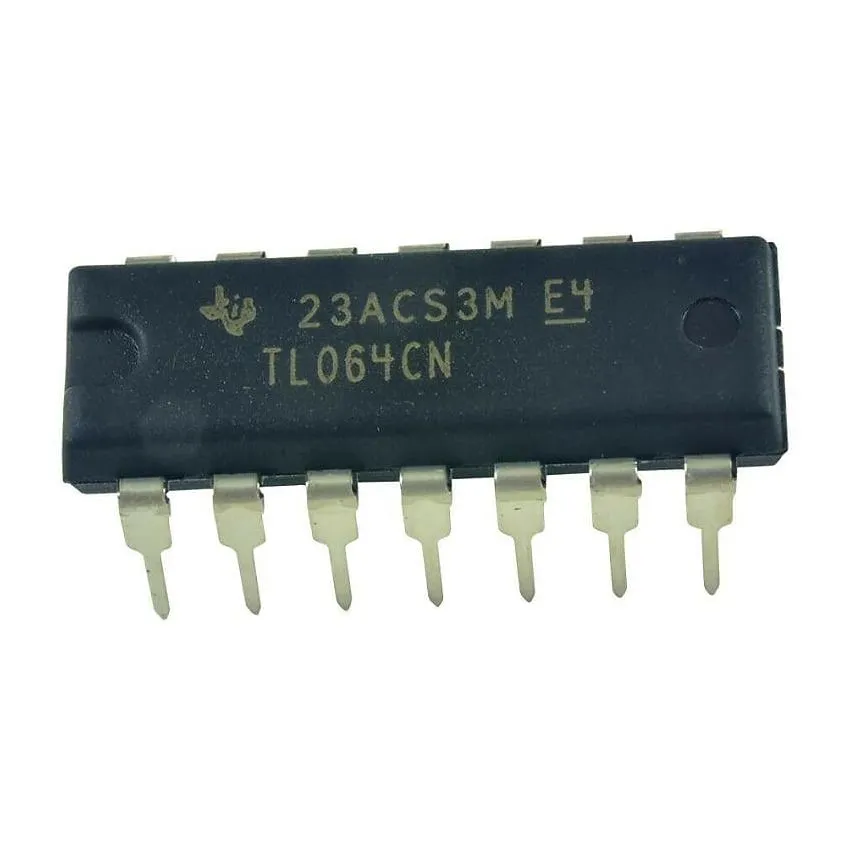

TL064CN, Quad Low-Power Operational Amplifier, JFET Input, Wide Bandwidth (2 MHz)

The TL064CN quad operational amplifier is designed for low-power applications that demand high input impedance, low input bias current, and high slew rate. Featuring JFET inputs, the TL064CN provides a 2 MHz gain bandwidth product, making it suitable for a variety of analog applications, including filters, instrumentation, and signal conditioning.

With a typical power consumption of only 200 uA per amplifier, this op-amp is perfect for battery-powered designs where energy efficiency is critical. Its high common-mode rejection ratio (CMRR) of 80 dB and a power supply rejection ratio (PSRR) of up to 86 dB ensure stable and accurate signal amplification. The device supports an input voltage range of -11.5V to +11.5V, allowing for flexible operation with dual supply voltages. Additionally, the TL064CN is equipped with output short-circuit protection, ensuring long-term reliability.

Key Features :

• Low Supply Current: Consumes only 200 uA per amplifier, ideal for battery-operated devices.
• High Gain Bandwidth Product: Achieves a 2 MHz bandwidth, enhancing performance in signal amplification.
• Common Mode Rejection Ratio (CMRR): Maintains CMRR up to 80 dB, ensuring accurate differential signal amplification.
• Wide Input Voltage Range: Operates effectively across a wide range, from -11.5V to +11.5V with a 15V supply.
• High Input Impedance: Input impedance up to 10¹I2C Ω, minimizing loading effects on circuits.
• Output Short Circuit Protection: Equipped with short circuit protection for enhanced durability and safety in various applications.
