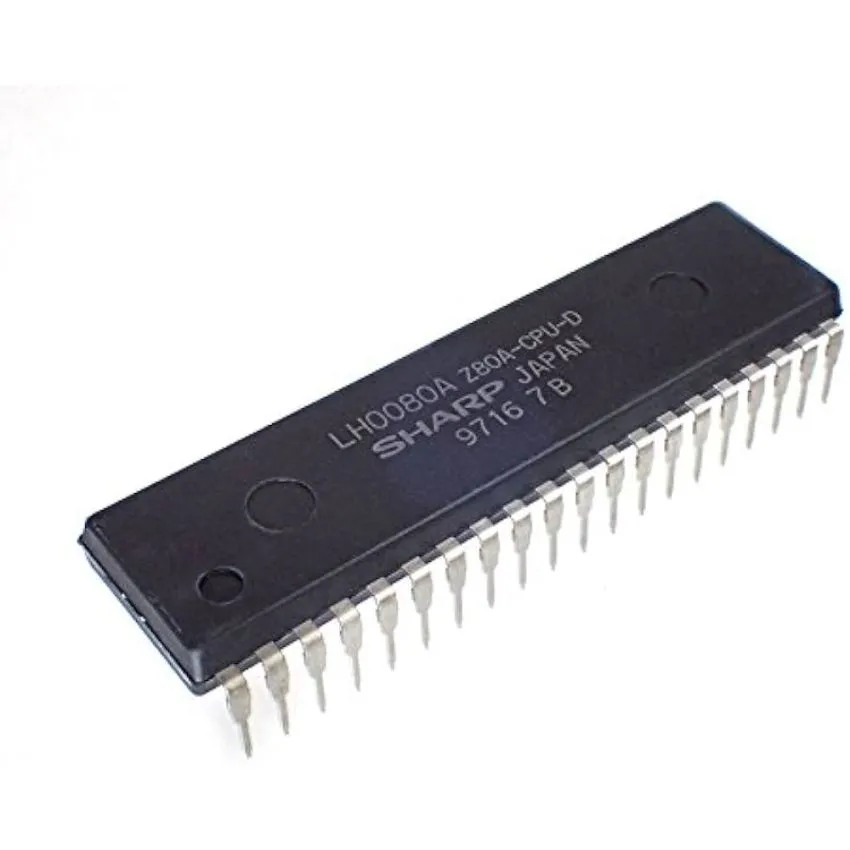

The LH0080A is an 8-bit microprocessor developed by Sharp Corporation, fully compatible with the Zilog Z80 CPU architecture. Designed for computing and embedded applications, it provides reliable performance and seamless integration with existing Z80-based systems. With a clock frequency of up to 4MHz, the LH0080A is capable of handling complex instruction execution efficiently.
This microprocessor operates on a single +5V power supply and is housed in a 40-pin Dual In-Line Package (DIP-40), making it easy to integrate into through-hole PCB designs. The standard Z80 instruction set is fully supported, ensuring compatibility with existing software and development tools.
The LH0080A features a multiplexed bus interface, enabling efficient communication with external memory and peripherals while reducing the number of required pins. Its architecture allows for use in a variety of applications, including industrial control systems, embedded computing, consumer electronics, and retro computing projects.
With its legacy compatibility and stable performance, the LH0080A is an excellent choice for projects requiring Z80-based microprocessor solutions, providing a balance between power efficiency and processing capability.
Key Features :- Z80 CPU Compatibility: Ensures compatibility with software and peripherals designed for the Z80 architecture.
- 40-Pin Dual In-Line Package (DIP-40): Standard DIP-40 package for straightforward integration into through-hole PCB designs.
- Clock Frequency: Operates at clock speeds up to 4 MHz, suitable for various processing tasks.
- Power Supply Voltage: Requires a single +5V power supply for operation.
- Instruction Set: Supports the standard Z80 instruction set, facilitating compatibility with existing software.
- Supports Multiplexed Bus Interface: Enables efficient communication with memory and peripherals, reducing pin count and simplifying system design.
