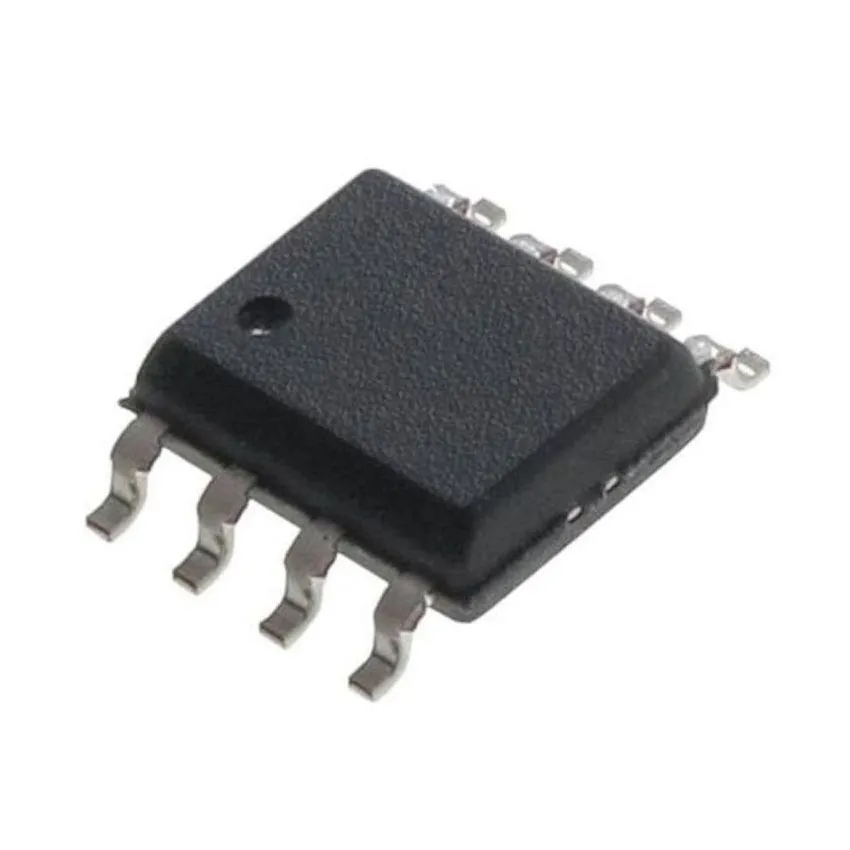

IR2153S Half Bridge Gate Driver IC SOIC8 Integrated Oscillator 600V

The IR2153S is a self-oscillating high-voltage half-bridge gate driver IC manufactured by Infineon Technologies. This versatile device is designed to drive two N-channel MOSFETs or IGBTs in half-bridge configurations, and integrates an onboard oscillator and high-side/low-side gate driver circuitry in a compact SOIC-8 package.

Key Features:

• Integrated high-voltage half-bridge gate driver with oscillator
• Floating channel designed for bootstrap operation up to +600V
• Internal 15.6V zener clamp on Vcc
• Adjustable oscillator frequency via external resistor and capacitor
• Undervoltage lockout with hysteresis
• SOIC-8 surface-mount package

Additional Specifications:

• Package Type: SOIC-8
• Supply Voltage: 10V to 15.6V
• Current: 180mA
• Type: Half-Bridge Gate Driver IC with Integrated Oscillator
