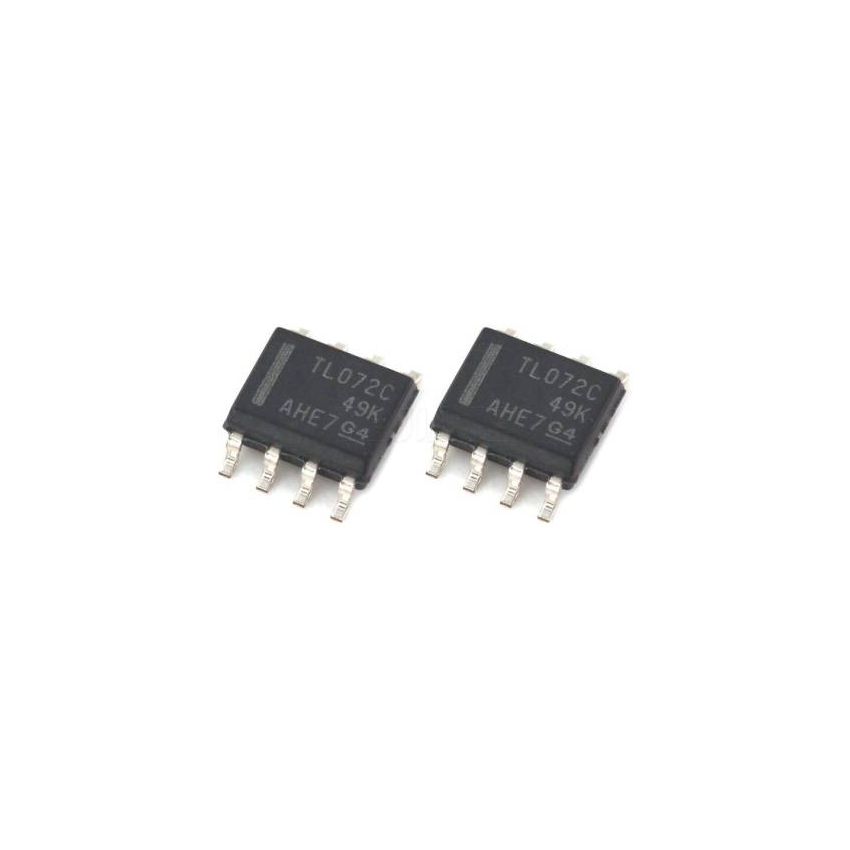

TL072CDT-SMD, Low-Noise JFET Dual Operational Amplifier, 16V Slew Rate, 6MHz Bandwidth

The TL072CDT-SMD is a low-noise, high-speed JFET-input dual operational amplifier designed to deliver high performance in precision applications. With an advanced JFET input stage, this op-amp offers high input impedance, low input bias current, and minimal input offset current, making it ideal for use in audio, instrumentation, and industrial signal processing. The device boasts a low equivalent input noise of 15 nV/√Hz, ensuring superior signal clarity in low-level signal amplification applications.

The TL072CDT features a typical slew rate of 16V/μs, making it well-suited for applications requiring fast signal transitions, such as filters, audio processing, and active analog designs. Its 6 MHz gain bandwidth product provides excellent AC performance, ensuring stable signal amplification over a wide frequency range. Additionally, the amplifier has low harmonic distortion of 0.01%, making it highly suitable for use in high-fidelity audio applications where signal integrity is paramount.

The amplifier comes in a surface-mount device (SMD) package, making it ideal for compact and high-density PCB layouts. With a wide common-mode voltage range and an output short-circuit protection feature, the TL072CDT-SMD provides reliable operation in various demanding environments, from automotive to industrial and consumer electronics.

Key Features :

• Low Noise: 15 nV/√Hz ensures minimal signal degradation, ideal for audio and instrumentation.
• High Slew Rate: 16V/μs for fast signal transitions and high-speed operation.
• Wide Bandwidth: 6 MHz gain bandwidth, providing superior performance in frequency-critical applications.
• Low Harmonic Distortion: 0.01% typical THD, ensuring signal clarity in audio circuits.
• Compact SMD Package: Space-efficient for surface-mount designs.
• High Input Impedance: JFET input stage provides minimal loading on preceding stages.
