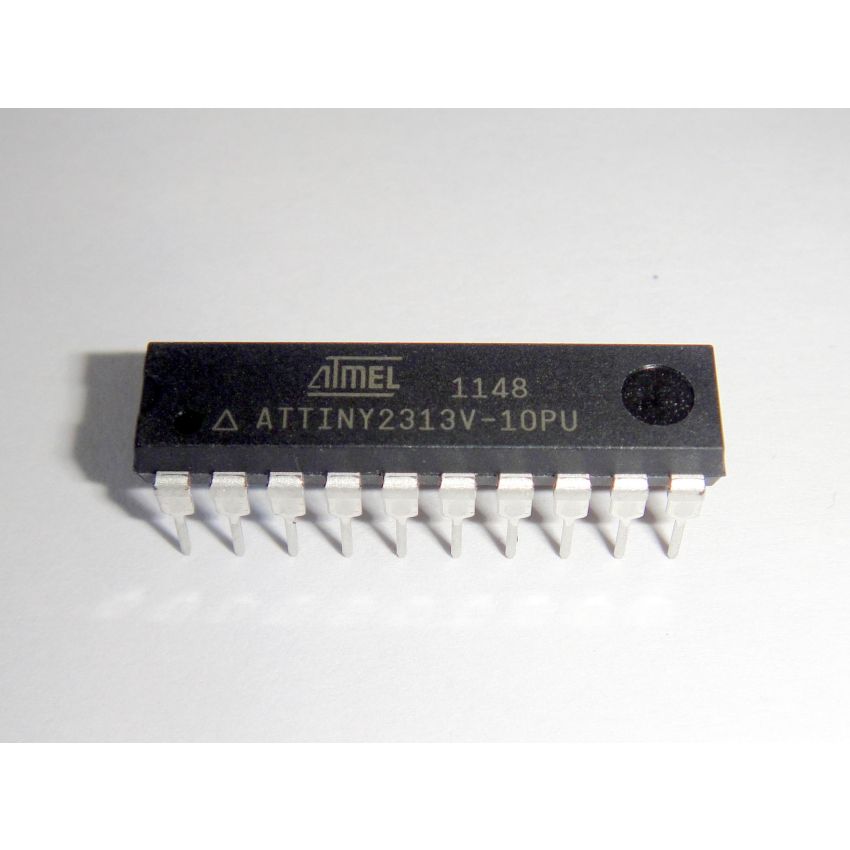

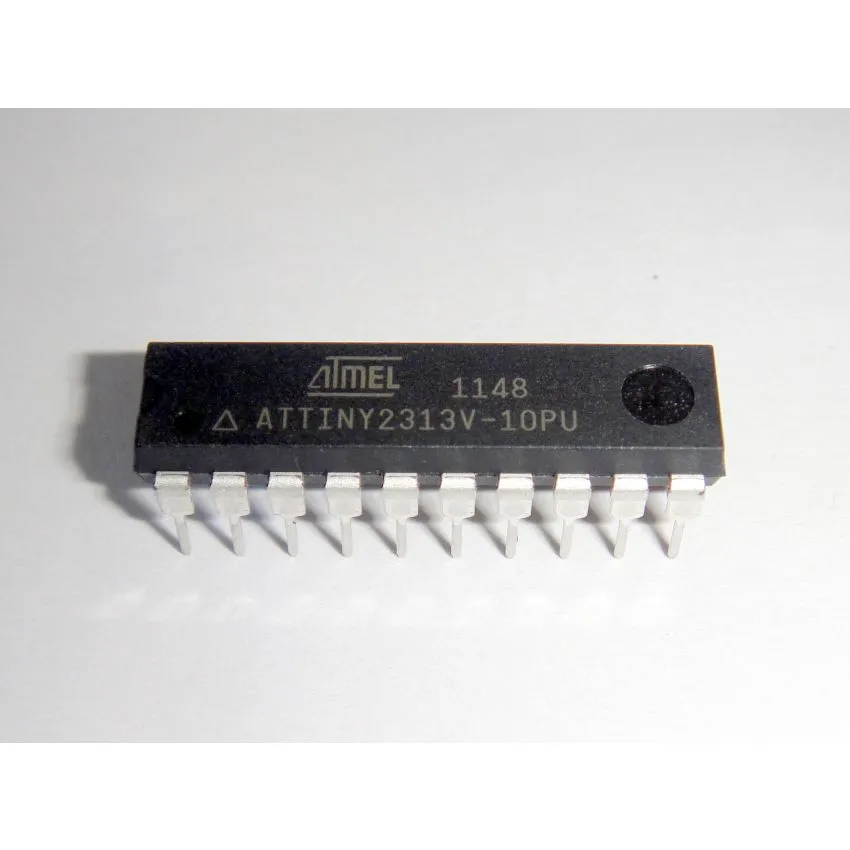

ATtiny2313V-10PU, 8-Bit Microcontroller, PDIP-20

The ATtiny2313V-10PU is a compact yet powerful 8-bit microcontroller from Microchip Technology's AVR® ATtiny family. Designed for high performance and low power consumption, it operates at frequencies up to 10MHz, delivering efficient processing capabilities. The microcontroller features 2KB of In-System Programmable Flash memory, facilitating flexible code development and updates. Additionally, it provides 128 bytes of SRAM for data handling and 128 bytes of EEPROM for non-volatile data storage.

With 18 general-purpose I/O lines, the ATtiny2313V-10PU offers versatile interfacing options for various peripherals and devices. Its enhanced peripheral set includes a Universal Serial Interface (USI), a UART with support for Local Interconnect Network (LIN), and a Master/Slave SPI serial interface, broadening its application scope. The microcontroller operates efficiently across a wide voltage range of 1.8V to 5.5V and includes multiple power-saving modes, making it suitable for battery-powered applications.

Packaged in a 20-pin PDIP form factor, the ATtiny2313V-10PU is ideal for through-hole applications and prototyping. Its combination of performance, low power consumption, and rich feature set makes it suitable for a wide range of applications, including consumer electronics, industrial control systems, and home automation.

• High-Performance AVR® RISC Architecture: Executes most instructions in a single clock cycle, achieving up to 10 MIPS throughput at 10MHz.
• 2KB In-System Programmable Flash Memory: Allows for flexible code development and updates, with support for up to 10,000 write/erase cycles.
• 128 Bytes of SRAM and 128 Bytes of EEPROM: Provides adequate data storage for variables and non-volatile data retention.
• 18 General Purpose I/O Lines: Offers versatile interfacing options for various peripherals and devices.
• Enhanced Peripheral Features: Includes a Universal Serial Interface (USI), UART with support for LIN, and a Master/Slave SPI serial interface.
• Low Power Consumption: Operates efficiently across a wide voltage range of 1.8V to 5.5V, with multiple power-saving modes.
