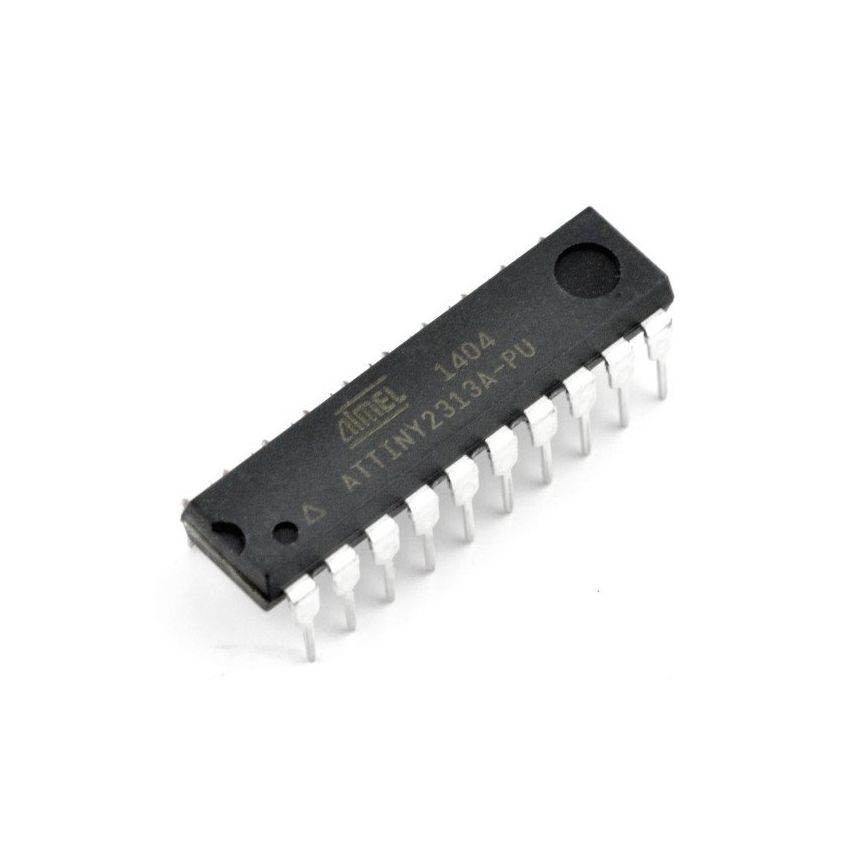

ATtiny2313A-PU, 8-Bit AVR Microcontroller, DIP-20

The ATtiny2313A-PU is a low-power, high-performance 8-bit AVR microcontroller built for embedded applications requiring reliable computing and energy efficiency. Operating at clock speeds up to 20 MHz, it is designed to provide fast processing power with a reduced instruction set architecture (RISC).

With 2KB of Flash memory, 128 bytes of SRAM, and 128 bytes of EEPROM, this microcontroller supports efficient program execution and data storage. The integrated peripherals, including timers, PWM, SPI, and USART, enable seamless interfacing with external components. Low-power consumption features make it an ideal choice for battery-operated applications.

Encased in a DIP-20 package, the ATtiny2313A-PU is easy to prototype and integrate into various electronic designs, such as industrial automation, consumer electronics, and IoT systems.

• High-Performance AVR RISC Architecture: Executes 120 powerful instructions, most in a single clock cycle, delivering up to 20 MIPS at 20 MHz.
• Flexible Memory Options: Includes 2KB Flash, 128B SRAM, and 128B EEPROM, providing versatile data storage.
• Low-Power Operation: Supports Idle, Power-down, and Standby modes for energy efficiency.
• Multiple Communication Interfaces: Features Universal Serial Interface (USI), USART, and SPI for flexible connectivity.
• Integrated Peripherals: Comes with one 8-bit timer, one 16-bit timer, PWM channels, and an analog comparator.
• DIP-20 Package: Ensures easy integration with standard through-hole PCB designs.
