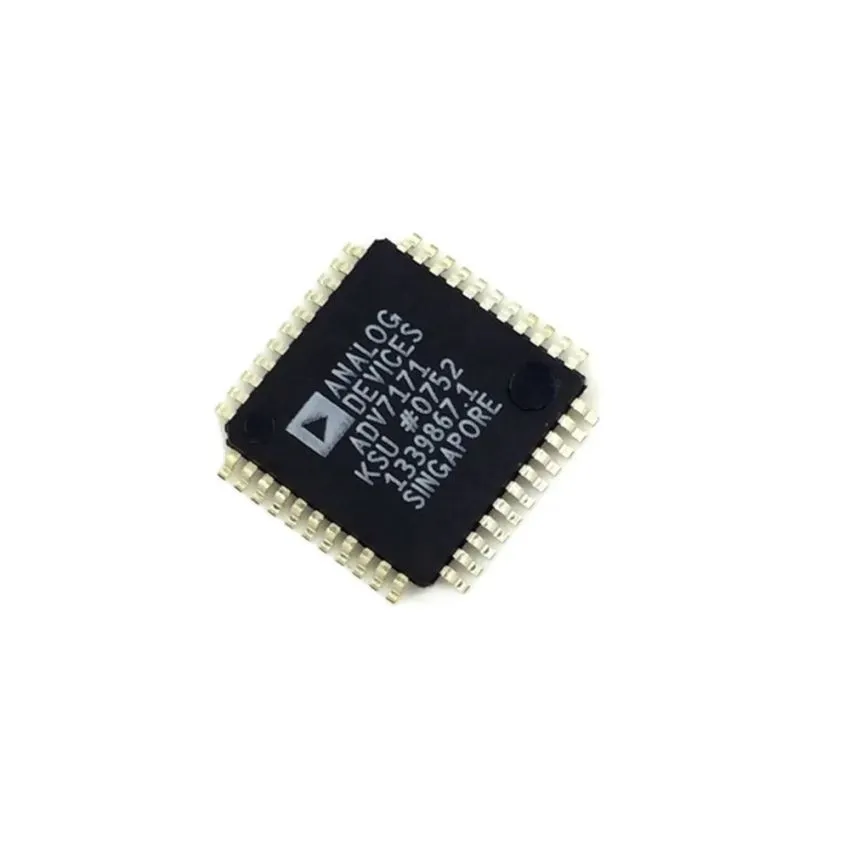

ADV7171KSU, Video Encoder, SOP-48

The ADV7171KSU is a high-performance video encoder designed for applications requiring digital-to-analog conversion of video signals. It supports various TV encoding standards such as NTSC, PAL, and SECAM. With on-chip filtering and programmable output levels, it ensures high-quality video output suitable for multimedia and broadcast applications. The low power consumption and compact SOP-48 package make it ideal for space-constrained designs.

Key Features:

• High-Performance Video Encoder – Converts digital video data into analog signals with high accuracy.
• Supports Multiple Video Standards – Compatible with NTSC, PAL, and SECAM formats.
• On-Chip Filters – Features anti-aliasing and reconstruction filters for superior output quality.
• Programmable Output Levels – Allows customization for different applications.
• Low Power Consumption – Optimized design for energy efficiency.
• Wide Application Range – Ideal for set-top boxes, DVD players, and video processing units.

Additional Specifications:

• Package Type: SOP-48
• Source Current: 400μA
• Supply Voltage: 3-3.6V
• Sink Current: 3.2Ma
