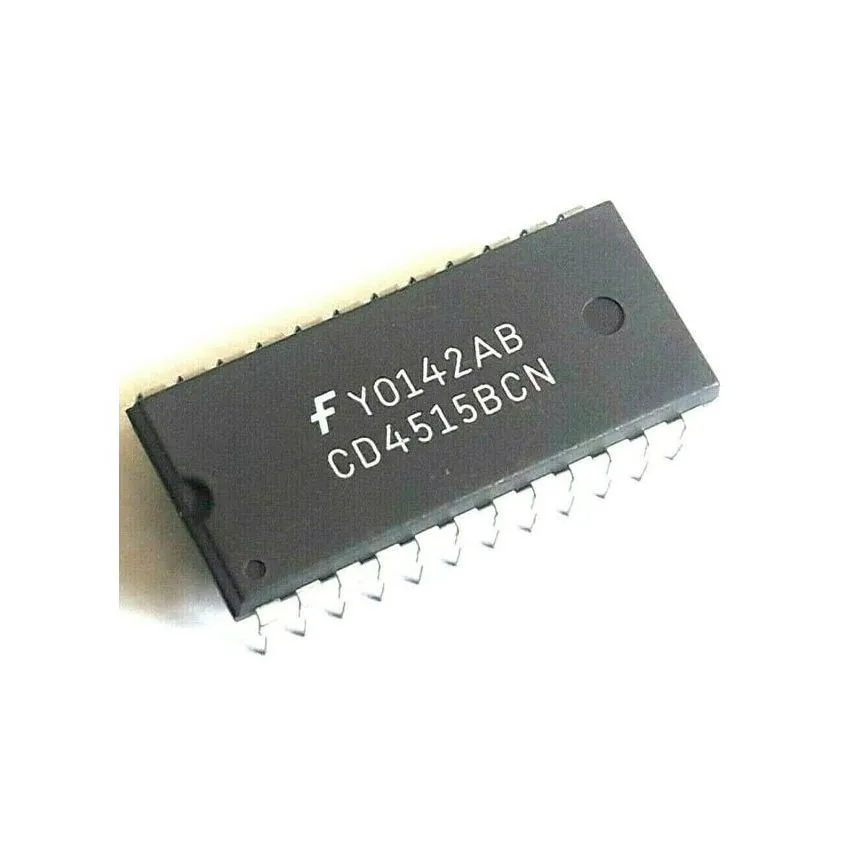

CD4515BCN,4-to-16 Line Decoder with Latches,DIP-24

The CD4515BCN is a high-performance CMOS 4-to-16 line decoder with integrated latches. Designed for efficient signal routing and memory addressing, it converts 4 binary-coded inputs into 16 active high outputs. The integrated latching feature ensures stable output operation for dynamic systems.

Encased in a DIP-24 package, the CD4515BCN operates across a wide voltage range of 3V to 15V, providing compatibility with standard CMOS logic. Its robust performance and low power consumption make it an essential choice for industrial, consumer, and educational electronics.

• 4-to-16 Line Decoding: Converts 4 binary inputs into 16 active HIGH outputs for reliable signal routing.
• Integrated Latch Functionality: Provides stable outputs for sequential data processing.
• Wide Voltage Range: Operates from 3V to 15V, suitable for CMOS logic applications.
• High Output Drive: Supports up to 10 loads with active high outputs.
• Compact DIP-24 Package: Ideal for through-hole PCB designs.
• Low Power Consumption: Optimized for efficient energy usage in digital systems.
