The AM29F040B-90PF is a high-performance 4 Megabit (512 K x 8-bit) Flash Memory developed by AMD, designed for 5V-only read and write operations. Built on advanced 0.35 µm CMOS technology, it is compatible with previous 0.5 µm Am29F040 devices, ensuring a seamless upgrade path.
With a 90ns access time, this flash memory supports high-speed microprocessor applications without the need for wait states. It features low power consumption with typical active read and program/erase currents of 20mA and 30mA, respectively, and a standby current of 1µA for energy-efficient systems.
The device incorporates a flexible sector architecture, dividing the memory into eight uniform 64KB sectors, enabling sector-specific erase operations. Additionally, it includes hardware sector protection to lock sectors against unintended program or erase operations. Embedded algorithms ensure reliable and automated programming and erasing processes, reducing the load on the host system.

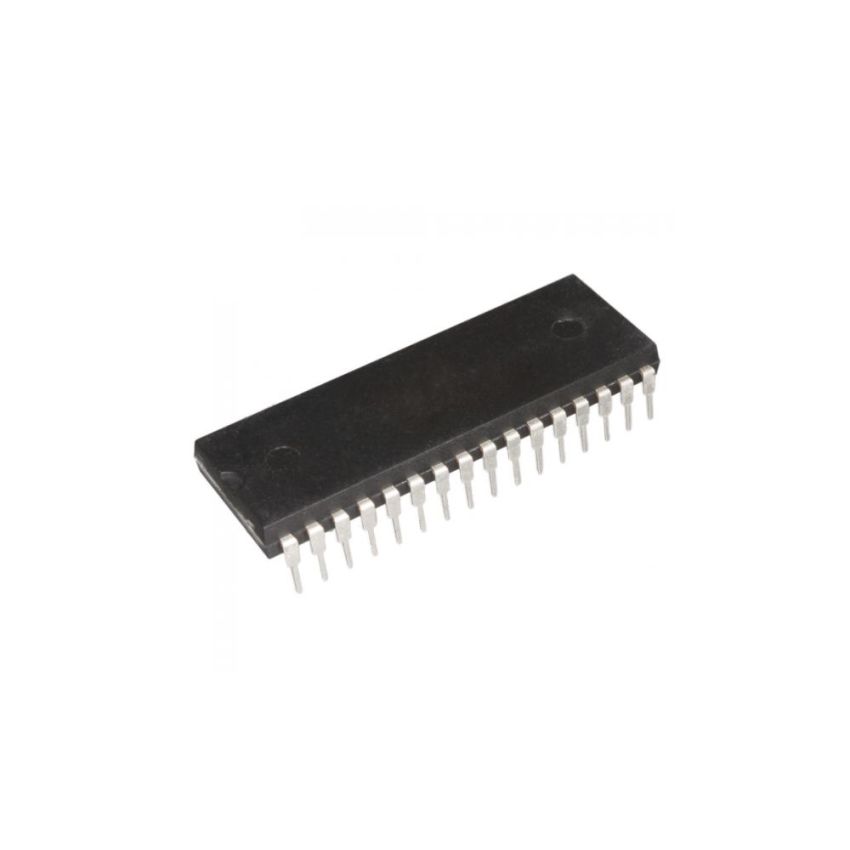

Compatible with JEDEC Flash memory standards, the AM29F040B-90PF supports a range of microprocessor interfaces and is packaged in a DIP-32 configuration for easy integration. The device is an excellent choice for applications like embedded systems, industrial controls, and communication equipment, offering both reliability and cost efficiency.
Key Features:- High-Performance Flash Memory: Access times as fast as 90ns for seamless operation in high-speed microprocessor systems.
- Low Power Consumption: Typical active read current of 20mA and standby current of just 1µA, ideal for energy-efficient systems.
- Uniform Sector Architecture: Eight 64KB sectors allow flexible erase and reprogramming capabilities.
- Integrated Protection: Hardware sector protection prevents accidental erasures or programming within selected sectors.
- Embedded Algorithms: Automated erase and program algorithms ensure efficient and reliable operations.
- Package Compatibility: Comes in a 32-pin DIP package, compatible with JEDEC standards and easy to integrate.
