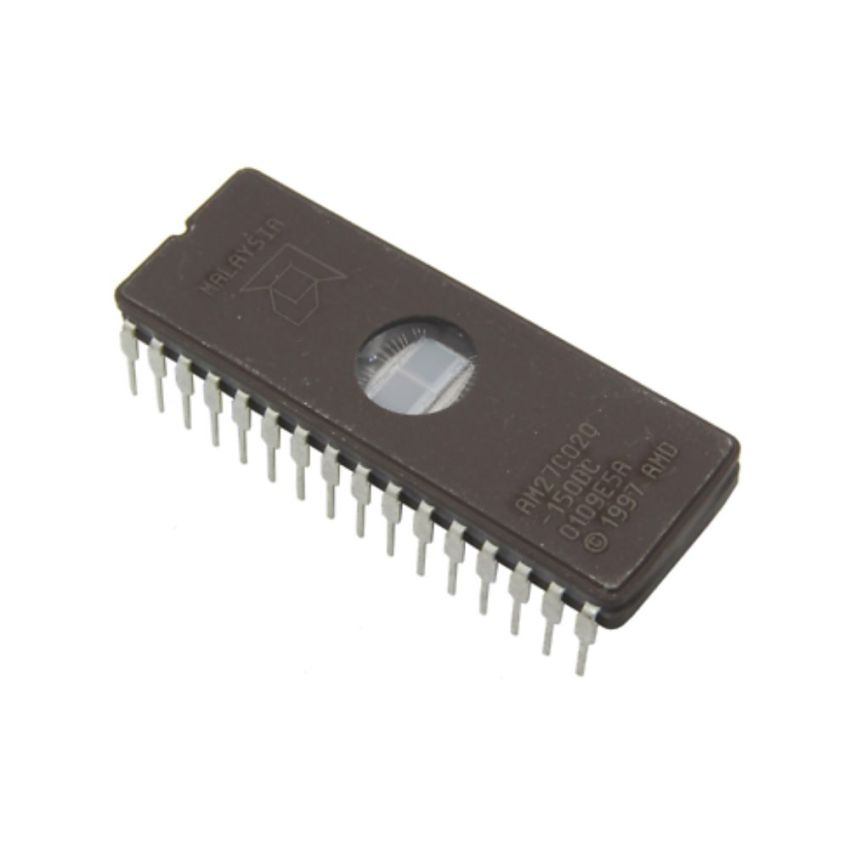

AM27C020-150DC, 2-Megabit CMOS EPROM, 32-Pin DIP

The AM27C020-150DC is a 2-Megabit CMOS EPROM (Electrically Programmable Read-Only Memory) developed by AMD. It is organized as 256K x 8 bits, making it ideal for code storage in embedded systems, microcontroller applications, and firmware development.

This EPROM operates on a single 5V power supply, reducing circuit complexity. Its fast access time of 150ns allows high-performance microprocessors and controllers to function without wait states, ensuring fast execution speed. The low power consumption of 100 µA in standby mode makes it suitable for battery-powered devices.

The JEDEC-standard 32-pin DIP package makes it pin-compatible with older EPROM devices, offering seamless system upgrades. The high noise immunity and latch-up protection enhance its reliability, ensuring stable performance over extended periods.

• 2 Megabit (256K x 8-bit) CMOS EPROM: Provides high-density, non-volatile storage for embedded systems.
• Fast Access Time: Operates with 150ns read access time, ensuring fast data retrieval.
• Single 5V Power Supply: Simplifies system design, requiring only +5V operation for read and programming.
• Low Power Consumption: Features 100 µA standby mode and active power consumption of 100mW.
• High-Reliability Design: Latch-up protection up to 100mA and high noise immunity, ensuring long-term stability.
• JEDEC-Approved 32-Pin DIP Package: Compatible with standard EPROM sockets, facilitating easy integration and upgrades.
