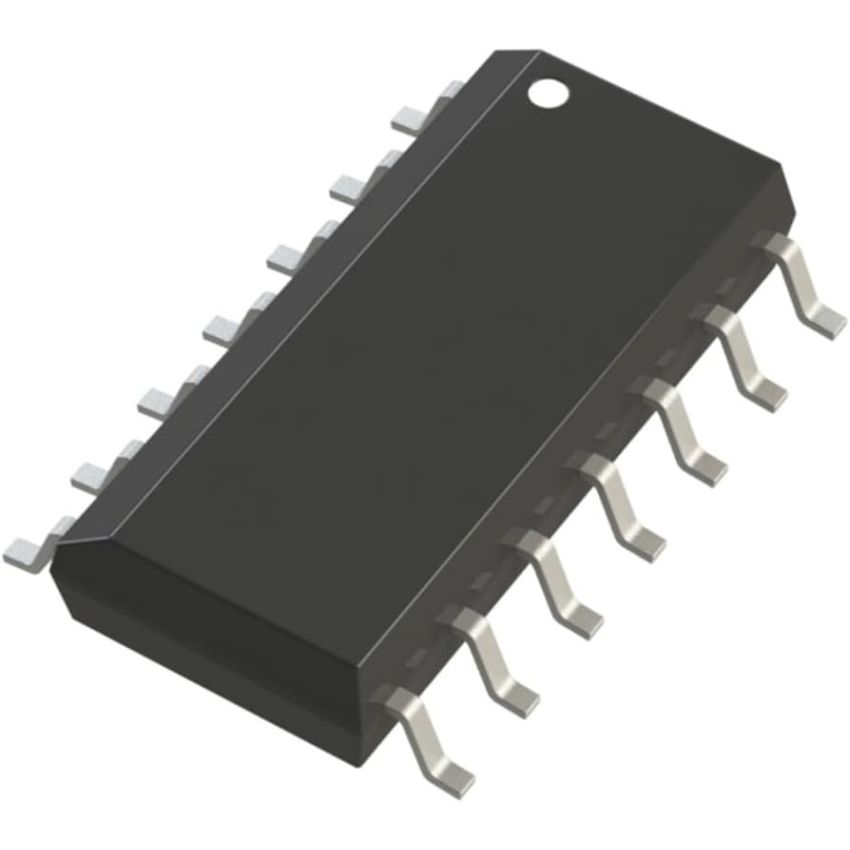

74HC08D AND Gate IC 4 Channel 14SO High-Speed CMOS 2-Input Per Gate

The 74HC08D is a high-speed CMOS quad 2-input AND gate fabricated using silicon gate CMOS technology. It is a member of the 74HC logic family and is pin-compatible with standard TTL logic ICs. Each gate performs the logic function Y = A · B, making it suitable for a wide range of logic operations.

Key Features:

• High-speed CMOS logic IC with low power consumption
• Contains four independent 2-input AND gates
• Wide supply voltage range: 2V to 6V
• Typical propagation delay: 8 ns at 5V
• Output drive capability: ±6 mA
• SOIC-14 surface-mount package

Additional Specifications:

• Package Type: SOIC-14
• Product Type: Quad 2-Input AND Gate
• Input Low Voltage: 5V
• Input High Voltage: 5V
• Propagation Delay Time: 8 ns
• Logic Gate Type: AND Gate
• Supply Voltage: 6V
