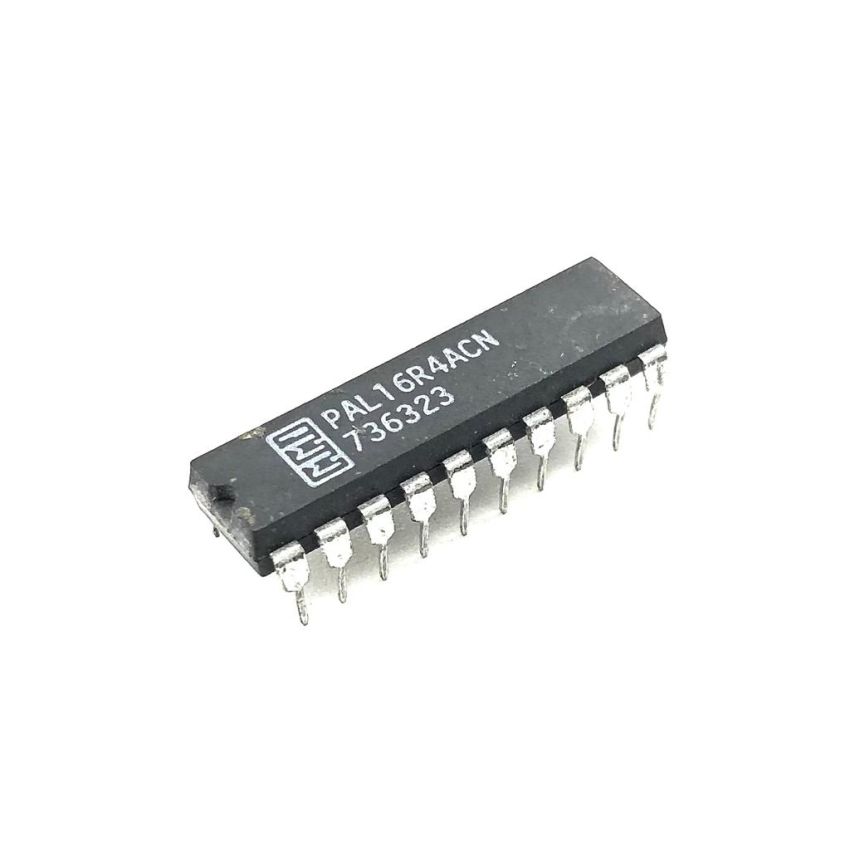

PAL16R4ACN - DIP

The PAL16R8 Family (PAL16L8, PAL16R8, PAL16R6, PAL16R4) includes the PAL16R8-5/4 Series
which provides the highest speed in the 20-pin TTL PAL device family, making the series ideal for
high-performance applications. The PAL16R8 Family is provided with standard 20-pin DIP and
PLCC pinouts and a 28-pin PLCC pinout. The 28-pin PLCC pinout contains seven extra ground pins
interleaved between the outputs to reduce noise and increase speed.
The devices provide user-programmable logic for replacing conventional SSI/MSI gates and flip-flops
at a reduced chip count.
