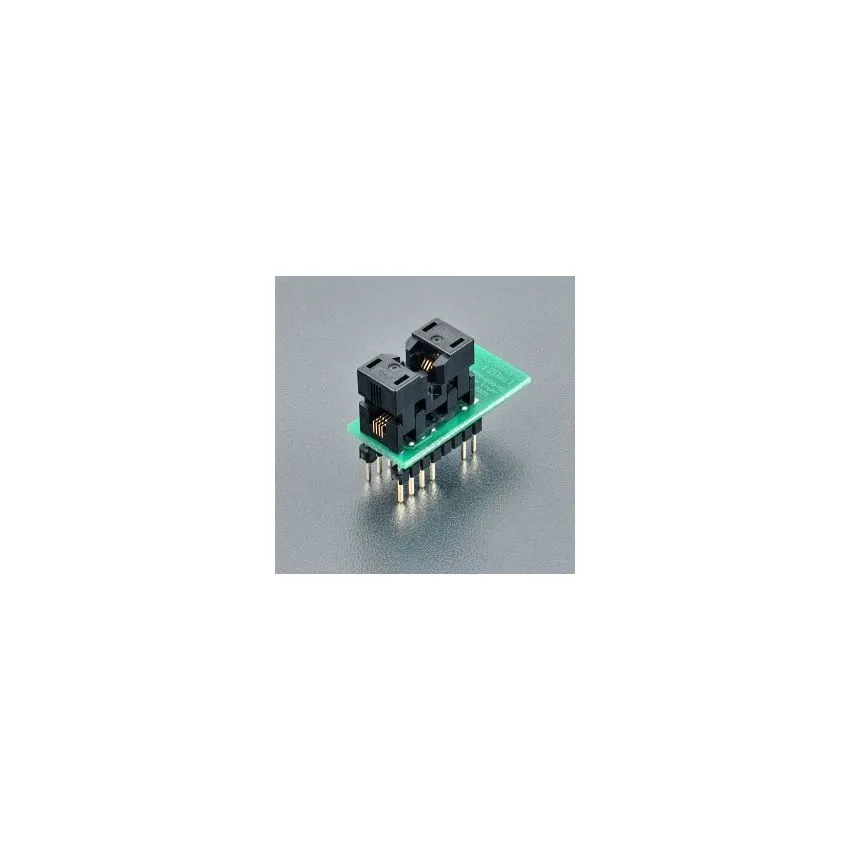

DIL8/SSOP8 ZIF 120mil

The universal adapter with Ord. no. 70-0358 is designed for MSOP/SSOP/TSSOP devices with up to 8 pins, such as serial EEPROMs and Microchip PIC 12xxx series microcontrollers. It features a ZIF (Zero Insertion Force) socket with an OpenTop type, allowing for easy insertion and removal of the devices without the need for additional tools.



The ZIF socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and long-term use in programming and testing operations. The bottom board of the adapter has 2 rows of 2x 4 pins each, with an additional 2x 2 pins for improved stability. The pins are arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 300mil, providing precise and reliable connections to the devices during programming and testing.



This universal adapter is designed to accommodate a wide range of MSOP, SSOP, and TSSOP devices with up to 8 pins, making it a versatile solution for programming and testing various microcontrollers and EEPROMs in a professional setting. It is made in Slovakia using high-quality materials and manufacturing processes to ensure its reliability and performance.
