DIL48/SSOP56 ZIF-CS CY-1

The special adapter with Ord. no. 70-0413 is specifically designed for use with Cypress CY7C66111, CY7C66112, and CY7C66113 microcontrollers in SSOP56 (Shrink Small Outline Package 56) package. This adapter is intended for programming or testing operations specifically for these Cypress microcontrollers and is not intended for use with other devices.

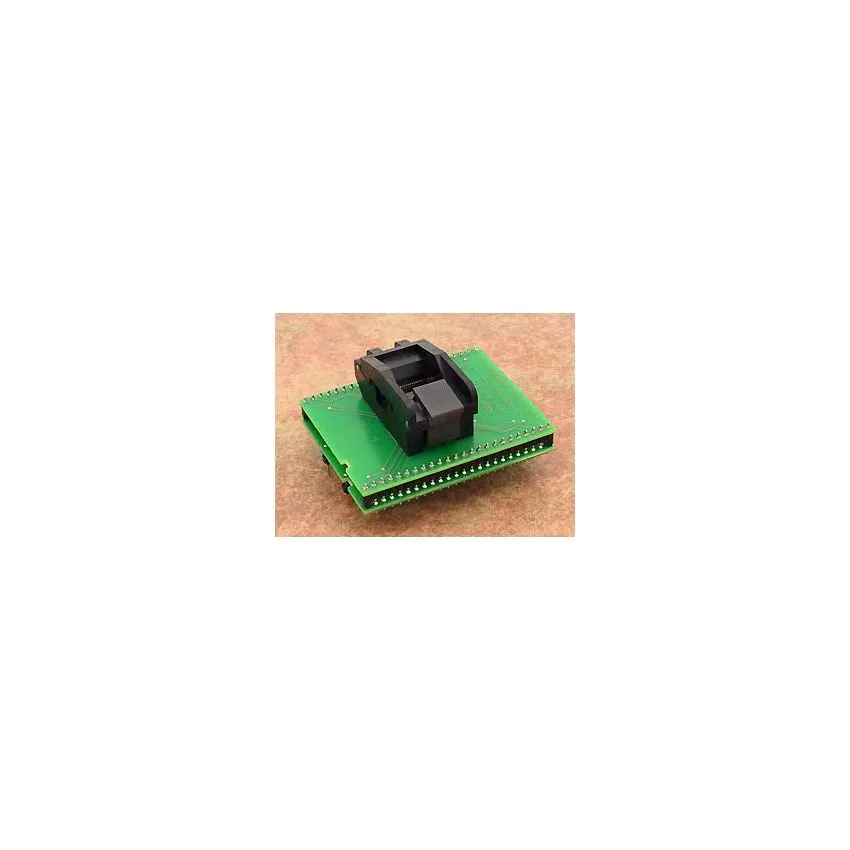

The adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type design, which allows for easy and secure insertion and removal of the target device during programming or testing operations. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and longevity for multiple use cycles.



The bottom board of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spacing of 600mil. These pins are designed to connect with the corresponding pins on the Cypress CY7C66111, CY7C66112, and CY7C66113 microcontrollers in SSOP56 package, providing a reliable electrical connection for programming or testing operations.



The adapter is made in Slovakia, ensuring high-quality manufacturing processes and materials. The Ord. no. 70-0413 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the target Cypress microcontrollers in SSOP56 package with the ZIF socket and the overall adapter design before proceeding with programming or testing operations.
