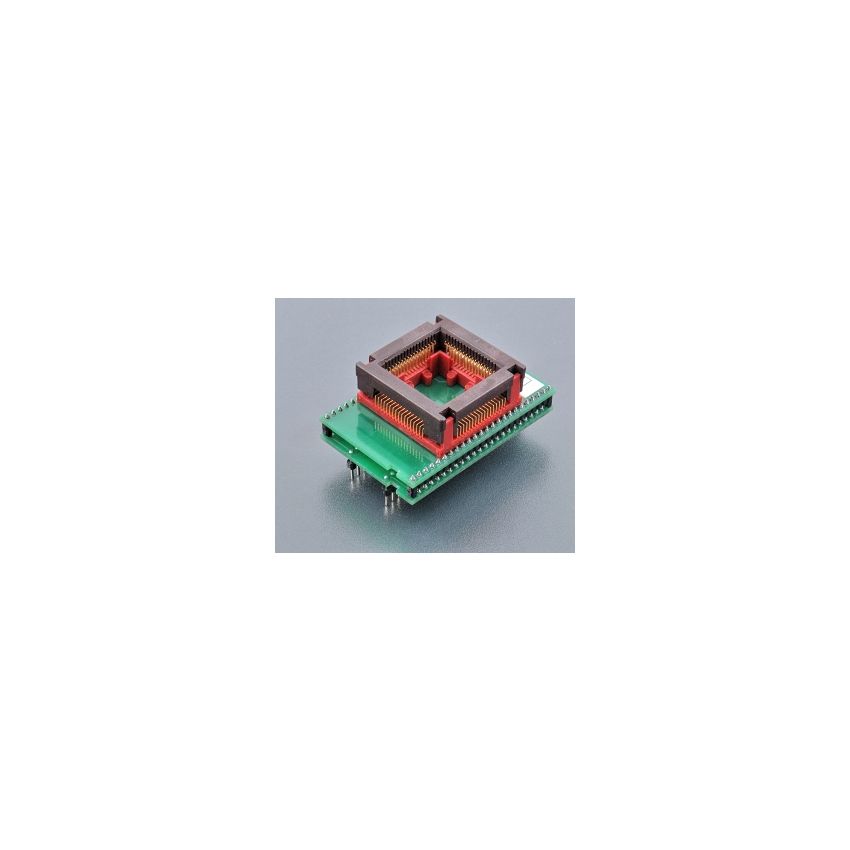

DIL48/PLCC68 ZIF PLD-1

The special adapter is specifically designed for programming and testing CPLD (Complex Programmable Logic Device) devices, such as Atmel ATF15xxAS/ASL/ASV/ASVL and Altera MAX 7000/S, which come in PLCC68 (Plastic Leaded Chip Carrier 68) package. It features a ZIF (Zero Insertion Force) socket with a PLCC68 OpenTop type design, known as ZIF PLCC68 OpenTop, which allows for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for devices in PLCC68 packages, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0195. This special adapter provides a reliable solution for programming and testing CPLD devices, such as Atmel ATF15xxAS/ASL/ASV/ASVL and Altera MAX 7000/S, in PLCC68 packages, offering durability, versatility, and ease of use for programming needs.
